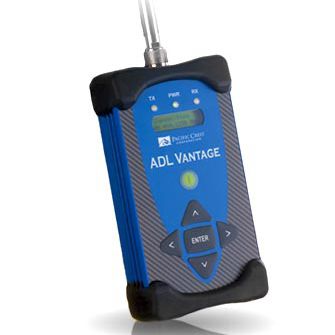

ADL Vantage is an advanced, high speed, wireless data link built to survive the rigors of GNSS/RTK surveying and precise positioning
Description

This sophisticated 0.1-4.0 Watt radio modem utilizes Pacific Crest’s next generation Advanced Data Link (ADL) technology while remaining backward compatible with existing Pacific Crest, Trimble and other products. ADL Vantage’s full-function user interface streamlines field configuration and troubleshooting so you can maintain maximum productivity. For the most rugged and reliable digital data link, go with the Geomatics industry’s new standard in wireless communications – ADL Vantage.

Key features:

Multi-function user interface allows radio configuration and troubleshooting in the field: change configuration to adapt to changes in field equipment
Heavy-Duty Construction: all metal construction for the ultimate in impact and EMI resistance, environmentally sealed to IP67 standard
High Over-the-Air Link Rate 19,200 bps (both GMSK and 4FSK) supports 1Hz RTK corrections for multi-GNSS receivers
Configurable Transmit Power 0.1-2 W for longer battery life, 4.0 W for longer range (where permitted)
Advanced 40 MHz Bandwidth (390-430 and 430-470 MHz models available): Advanced Data Link design for high performance over the entire band
Software-Derived Channel Bandwidth compatible with both 12.5 and 25 kHz radios

Parameter Name	Parameter Value
Type	data wireless
Network	radio GNSS
