Data-matrix reading vision system Robocheck

Data-matrix reading vision system Robocheck

Data-matrix reading vision system Robocheck

About


Among the many optical supervision systems developed in-house by Visionic since 1990, the Robocheck© sensor array offers optical control capabilities to meet the needs of the most complex production lines.

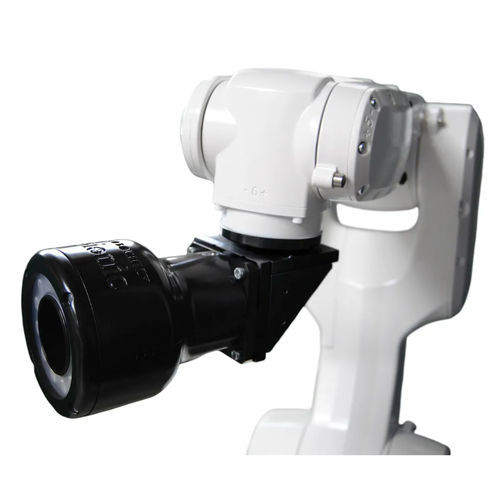

A concentrate of technology, the Robocheck© sensor is directly fixed to the robot and is designed to maintain the desired focus independently of x, y, z robotic orientation, acceleration and deceleration.

High definition digital matrix camera
Chromatic, monochromatic or NIR camera
Multi-spectrum annular LED light sources
Range of lenses to suit specified inspection fields
Dimensions : 148 mm x 116 mm x 116 mm
Plug and play interoperability with Intellicheck©
Focus in milliseconds, variable depth of field
Working distance between 100mm and 800mm
Optimized robot points and cycle times
Robot-movement-independent liquid lens adjustable to variable depth of field,
without change of Robocheck© sensor positioning
M12 connections
Upgradable performance to meet enhanced breadth and depth of field specifications

Option :

Additional low angle light sources
4 segments stereophotometry solution

Multiple functions packed into a single sensor
The ultra-versatile Robocheck© sensor has been developed to respond to numerous applications in increasingly complex modern production facilities across a wide range of sectors.



PARAMETERS

Parameter Name Parameter Value
Applications
  • industrial
  • data-matrix reading
Function
  • monitoring
  • visual positioning
Options
with camera for inspection tasks
