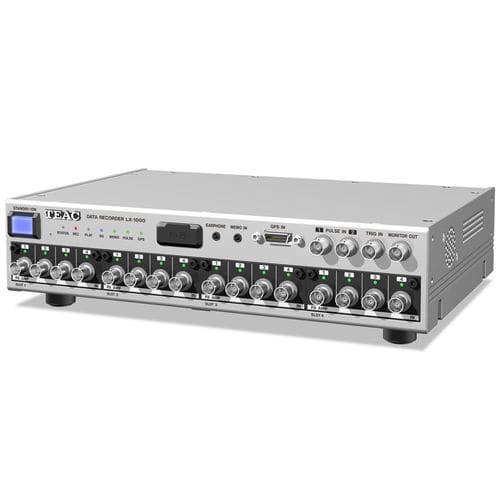

The LX-1000 Series is a family of highly reliable, portable data recorders designed to capture and record measurement data for testing and monitoring in a wide range of industrial and scientific applications. Based on a modular concept, the LX-1000 can be individually customised to the requirements of each application.

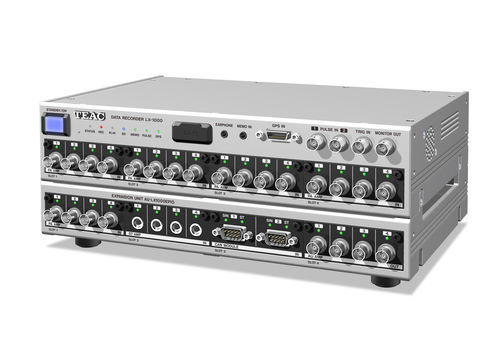

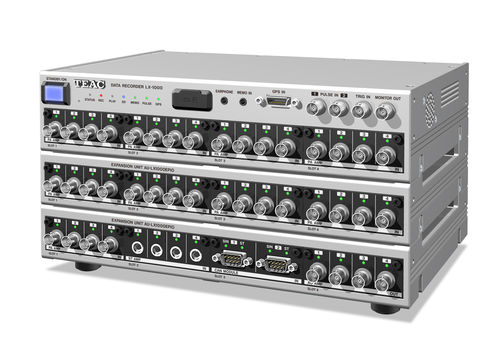

Up to four input modules with four channels each (two channels for CAN) can be configured and there is an expansion unit available which holds up to four additional input modules and can be fitted to the main unit. This way, one compact unit can provide up to 64 recording channels. Moreover, up to 256 channels can be realised by syncronising four such units.
Due to its compact size and fanless operation, the LX-1000 can be placed in the immediate vicinity of the measurement source. This allows noise and vibrations in addition to other measurement data to be recorded without interference. A remote control with full-colour display enables visualisation of recorded data and operation from a distance.

- Up to 256 recording channels
- Modular concept
- Fanless design
- Wide dynamic range
- Long-term recording
- Battery options are available
- GPS input
- Periodic File Close to avoid unexpected data loss
- Faster data transfer (1000BASE-T)
- File Format is TAFFmat (TEAC Data Acquisition File Format)
- Remote control unit ER-LXRC 1000 (option)

Parameter Name	Parameter Value
Type	paperless
Measured physical value	universal
Applications	industrial data logger
Number of channels	16-channel 32-channel 64-channel 48-channel
Other characteristics	portable modular
