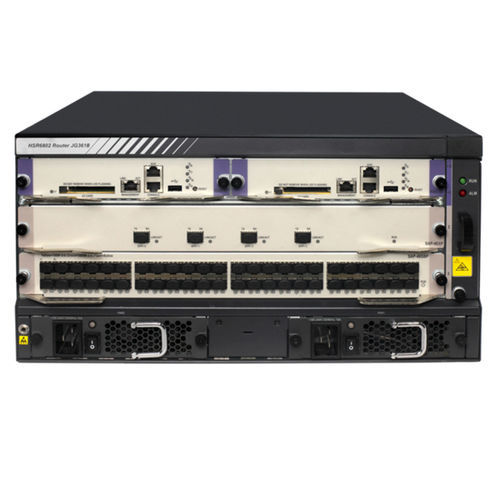

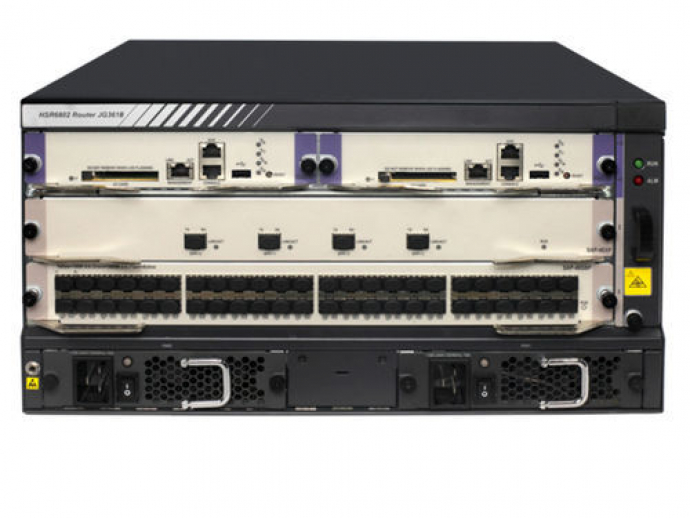

The HPE HSR6800 Router Series is a family of high-performance, multiservice routers designed for data center interconnection, enterprise WAN core, campus WAN edge, and high-speed WAN aggregation services. It runs the Comware operating system and features an advanced multi-core, distributed service processing hardware architecture that scales up to 420 Mpps forwarding and up to 2 Tbps switching capacity.

The router delivers robust routing, multicast, Multiprotocol Label Switching (MPLS), IPv6, security, quality of service, carrier-level high-availability features, and high-density 10GbE and 1GbE interface options.

Fully modular Comware v7 network operating system offers improved performance and system availability.
Feature enhancements including ADVPN, IRF2, EVI, EAA, and ISSU.
FIP-240 doubles FIP-210 forwarding performance, up to 4 HIM/MIM slots.
Line cards offer 1GbE combo/10bGE ports, increased IPsec performance.
RT-HIM-2EXP doubles HIM 10GbE port density and supports SFP+.
Key Features
High-performance Platform with Distributed Service Architecture
The HPE HSR6800 Router Series features advanced hardware architecture with multi-core CPUs and fully distributed routing and service engines for increased performance.

The platform scales up to 420 Mpps forwarding performance, 120 Gbps IPsec performance, 2 Tbps switching capacity and delivers up to 64 10GbE ports, 384 GbE ports, 32 channelized OC-3 POS interfaces, 1512 E1 interfaces, and 2016 T1 interfaces.

Parameter Name	Parameter Value
Type	data
Network	WAN EDGE SIP
Number of ports	2 port, 4 ports, 6 ports, 1 port, 8 ports, 24 ports, 16 ports
Other characteristics	VPN modular high-speed
