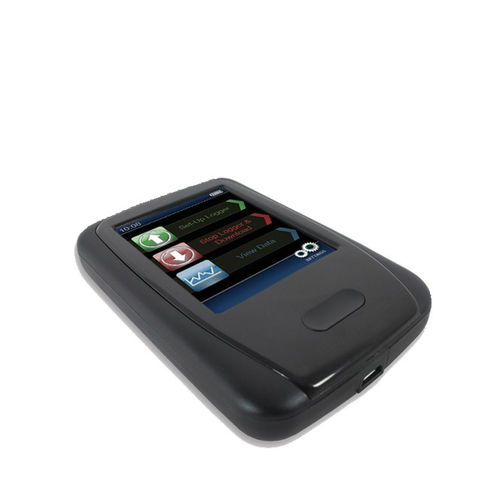

Handheld Programmer and Data Collector for EasyLog USB rangeCollects and stores data from at least 500 data loggersFull or quick set-up of compatible EasyLog USB dataTouch screen interface for navigation of menusStored data can be transferred to a PC/Mac via micro USB cableIntegral rechargeable lithium battery provides up to 8 hours useThe EL-DataPad allows users of Lascar’s EL-USB data loggers to configure their units and download data and view logging results on-the spot rather than removing the logger from the environment being measured and taking it to their PC. This allows continual logging with shorter breaks in data collection, less travel for the user, on-site data collection in graph, legend and summary format and the ability for users to reconfigure loggers in ‘the field’.The logger is connected to the EL-DataPad via a standard USB port at the top of the viewer. Once connected, the user is guided through a simple touchscreen menu with options to Set-Up Logger, Stop Logger & Download and View Data. On-screen instructions follow the same structure as Lascar’s EL-USB-WIN software for PC currently provided with each data logger.Data from up to 100 loggers can be viewed on the EL-DataPad, with data from a further 400 units stored on the unit at any one time. Data can be transferred to a PC or Mac using a micro USB cable supplied with the unit. Once uploaded, data is saved in comma separated variable (csv) format, making it suitable for import into spreadsheet packages such as Microsoft Excel or graphed on a PC using Lascar’s EL-WIN-USB software.

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	handheld
Resolution	800 x 400
Applications	data collection
