About

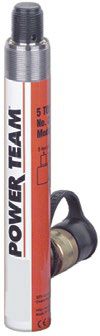

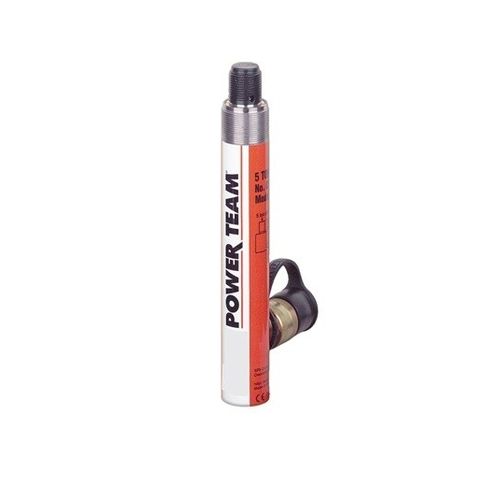

Single Acting, Spring-Return, threaded piston rod end and base that is built to accommodate accessories and adapters. Threaded cylinder collars, piston rod ends, and internal base threads simplify mounting. A 9796 3/8" NPTF female half coupler is standard with each cylinder; oil port threads are 3/8" NPTF.
Features
THREADED PISTON ROD END AND BASE THREADS ACCOMMODATE ACCESSORIES AND ADAPTERS
■ Threaded cylinder collars, piston rod ends, and internal base threads simplify mounting.
■ A 9796 3/8” NPTF female half coupler is standard with each cylinder. Oil port threads are 3/8" NPTF.
■ Removable threaded rod cap.
■ Factory accessories do not de-rate tonnage.
■ Complies with ANSI / ASME B30.1 safety Standards
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
hydraulic
|
| Technology |
|
| Configuration |
single-acting
|
| Pressure |
Max.: 10.1 psiMin.: 8.9 psi
|
| Rod diameter |
1 in, 2 in
|
| Bore |
1 in, 2 in, 3 in
|
