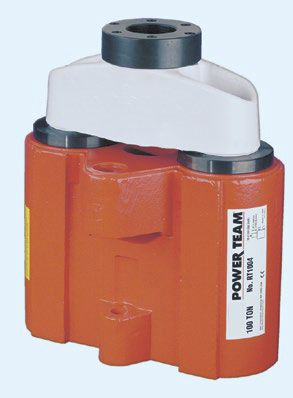

Single-Acting, Spring-Return and Double-Acting Power Team cylinder, ideal for pulling and pressing. A proven design; used throughout industry for over 45 years. The RT Series cylinders are compactly designed to withstand full “dead-end” loads. Basic cylinder head can be changed from a tapped hole to plain hole by simply changing insert. Pistons have “Power Tech” treatment for corrosion and abrasion resistance.

Features
IDEAL FOR PULLING AND PRESSING APPLICATION, REQUIRING HIGHER FORCES

■ Cylinders withstand full “dead-end” loads.
■ Compact design is ideal for applications in which space is limited.
■ Basic head can be changed from a tapped hole to plain hole by simply changing the insert.
■ Pistons have “Power-Tech” treatment for corrosion and abrasion resistance.
■ Complies with ANSI / ASME B30.1 safety standards

Parameter Name	Parameter Value
Type	hydraulic
Configuration	double-acting single-acting
Applications	industrial
Other characteristics	compact corrosion-resistant abrasion-resistant with inner hole
Pressure	Max.: 10,395 psiMin.: 9,915 psi
