X/B/JXJ Series Cycloidal Reducers
Rated Power: 0.37KW~55KW
Max. Torque: 150~20,000N.m
Gear Arrangement: Cycloid & Pin Wheel
Shafts Position: Coaxial / Inline
Ratio: 9~1849
Installation Form: Foot, Flange Mounted

Components:
1. Housing: Cast Iron
2. Gearset: Cycloid Wheel & Pin Wheel
3. Input Configurations:
Equipped with Electric Motors (AC Motor, Brake Motor, Explosion-proof Motor, Regulated Speed Motor, Hydraulic Motor)
IEC-normalized Motor Flange
Keyed Solid Shaft Input
4. Output Configurations:
Keyed Solid Shaft Output

Features:
1. Large reduction ratio, 1-stage ratio 9~87, 2-stage ratio 121~1849, larger reduction ratio is available by 3-stage or multistage combinations
2. High efficiency, the average efficiency is over 90%
3. Compact structure, light weight
4. Stable and reliable operation, low noise
5. Long service life

1 Stage Ratio: 9, 11, 17, 23, 29, 35, 43, 59, 71, 87
2 Stage Ratio: 121, 187, 289, 385, 473, 595, 731, 989, 1225, 1849

Installation:

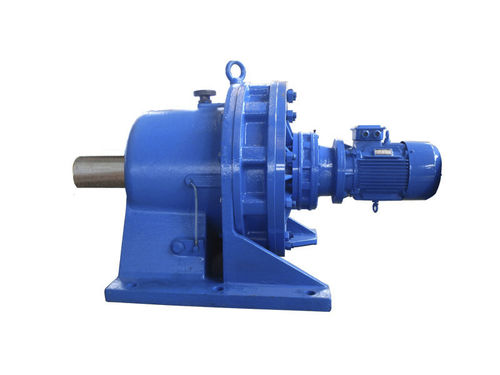

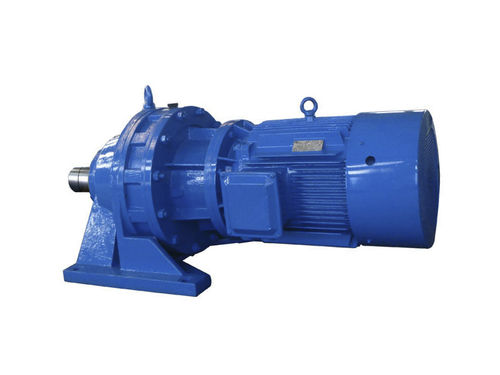

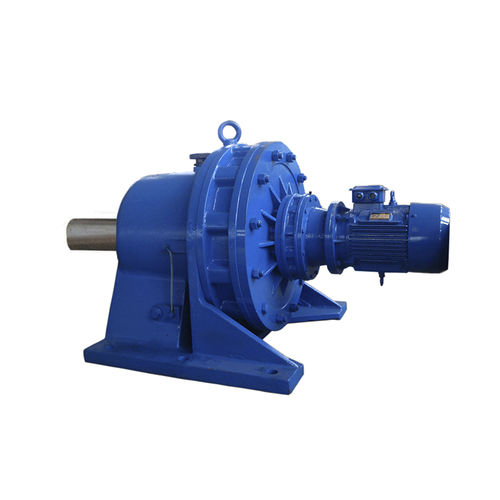

Foot Mounted

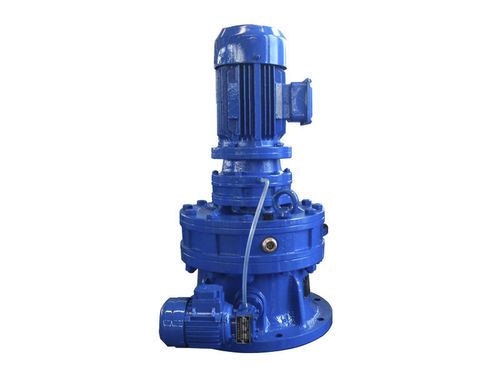

Flange Mounted

Parameter Name	Parameter Value
Type	cycloidal
Shaft orientation	coaxial
Torque (Nm)	10000 - 10000
Performance	low-noise
Applications	shaft wheel
Other characteristics	compact flange mounted large motor
Power (W)	370 - 55000
