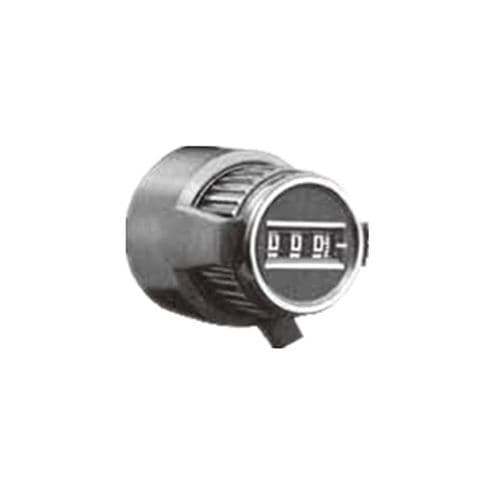

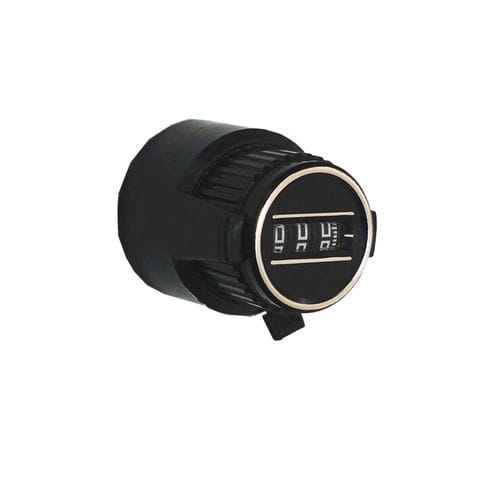

DC10-27B Series Turns-counting Dial

- Digital-Readout
- RoHS Compliant

General Specifications
- Number of turns-counting: 10
- Max. indication: 999 (1/5000)
- Matching shaft diameter: Standard 6mm, 6.35mm; Special 3m, 3.175m, 4mm
- Operating temperature range: -30℃~+60℃
- Lock device: Yes

Model No: DC10-27B / DC10-27BK
- Combinable helicalohm potentiometer (Matching shaft length: 18.5~20.6mm, n=Number of turns): 22HP-n, 22HP-nN, 25HP-nD, 22HHP-n, 22HHP-nN

Model No: DC10-27BF
- Combinable helicalohm potentiometer (Matching shaft length: 18.5~20.6mm, n=Number of turns): 22HP-n, 22HP-nN, 22HHP-n

Model No: DC10-27BFK
- Combinable helicalohm potentiometer (Matching shaft length: 18.5~20.6mm, n=Number of turns): 25HP-nD, 22HHP-nN

Please contact us at trade1@sakae.cn for customization.

Parameter Name	Parameter Value
Type	cycle
Display	digital analog
Technology	electromechanical
Applications	industrial
Communication	digital output
Protection level	rugged
Other characteristics	compact automatic
