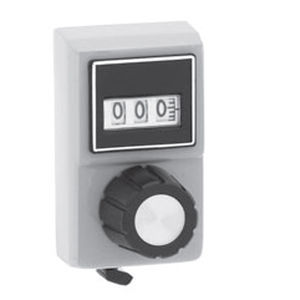

DB Series Turns-counting Dial

- Digital-Readout
- RoHS Compliant

General Specifications
- Matching shaft diameter: Standard 6mm, Special 3m, 3.175m, 4mm, 6.35mm
- Combinable helicalohm potentiometer (Matching shaft length of 25mm): 20HP, 22HP, 25HP, 20HHP, 22HHP, 46HD
- Lock device: Yes
- Operating temperature range: -30℃~+85℃

Model No: DB10-26B
- Number of turns-counting: 10
- Max. indication: 999
- Standard color of case: Ivory
- Flexible coupling: Yes

Model No: DB10-26BA
- Number of turns-counting: 10
- Max. indication: 999
- Standard color of case: Silver
- Flexible coupling: Yes

Model No: DB10-26BD
- Number of turns-counting: 10
- Max. indication: 999
- Standard color of case: Silver
- Flexible coupling: No

Model No: DB100-26BD
- Number of turns-counting: 100
- Max. indication: 9999
- Standard color of case: Ivory
- Flexible coupling: Yes

Special Specifications Available
- Special colors on housing and spin plate on the top of the knob (Black, etc..)
- Specially marked in face plate such as with a decimal point, comma, etc..

Please contact us at trade1@sakae.cn for customization.

Parameter Name	Parameter Value
Type	cycle
Display	digital analog
Technology	electromechanical
Applications	industrial
Communication	digital output
Protection level	rugged
Other characteristics	compact automatic
