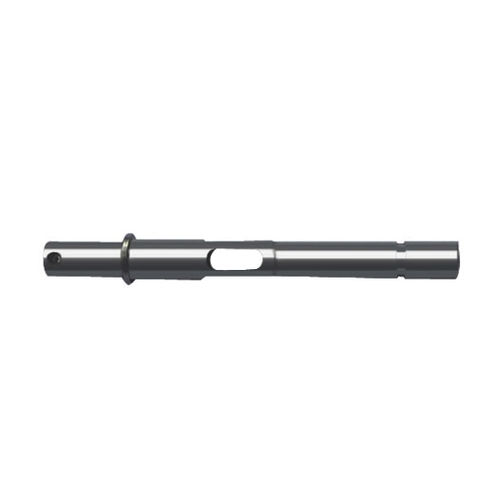

Cutting tool shaft LZQ-27

in Shafts

Cutting tool shaft LZQ-27
in Shafts

Cutting tool shaft LZQ-27

in Shafts

About


With excellent rigidity, tooling can conduct highly efficient machining.
1. General\high precision product, surface finish≤Ra0.15μm.
2. Adopting advanced power high speed CNC grinder to make high precision profile grinding,it has perfect blade quality & precision tolerance.
3. Inclination\number of flute (2-flute~6-flute)\type of holder\helical angle\flute length\holder diameter\overall length etc can be machined according to requirements.



Note: non-standard, and size will be produced according to the order.



Adopting advanced power high speed CNC grinder from Germany and Switzerland as well as high precision (3DX technology) grinding of high



High-impact-resistant diamond tungsten steel (for intermittent cutting)

High hardness diamond tungsten steel (for high wear resistance) HRF10/SR10T

Tungsten steel meeting ISO standard (for general machining) PR40/PRA5

High cobalt HSCo8(SKH59), ASP60 German standard (DIN) series complete grinding (2-flute~6-flute) end milling,

2-flute~4-flute

Type of flute: (standard and non-standard 1-flute~12-flute series mill, reamer): deep groove, round head, end angle R, hollow, oblique flute (tapered), long flute, for aluminum, copper application, chip-dividing groove (for rough mill application)

MRll diameter: (miniature) φ0.10mm---φ53.00mm (solid tungsten steel), φ20.00mm--φ80.00mm (brazing)

Tolerance: (standard and non-standard) tolerance of flute diameter of diamond tungsten steel can be up to ±0.001mm (±1μm) high, and tolerance of holder diameter is more than h6.

Helical angle: 0°,25°,30°,35°,45°,50°,55°,60°

Cold-hard machining replacing grinding can improve precision, hard milling replacing grinding can improve efficiency。



PARAMETERS

Parameter Name Parameter Value
Product applications
for cutting tools
