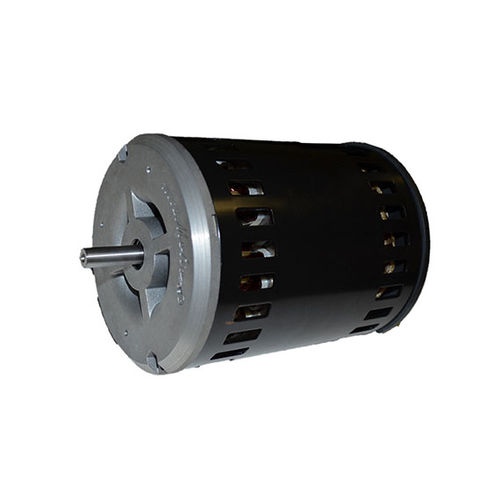

TelcoMotion’s Custom AC motor are designed to be your best motor for efficient and low noise applications. Frame size of 3.11”, 3.42”, and, 3.86” are available, and the Max output power can be achieved is 1/4HP. Telco's Custom AC motors are UL listed with various output power options available to best meet your needs. We are also proudly to provide one – stop solution to make your purchase even easier. And plus, with the strong R&D support, we welcome customization on motors as well as accessories.

Feature
•Shaft material: stainless steel
•Optional: brake and gearbox
•Operating temperature: - 10 ~ 40 °C
•Bearing type: ball bearings
•Poles: 2 and 4 poles
•Max. torque: 7.6 Lb-in
•Max. output: 1/4 HP (186 W)
•Insulation class: F
•Frame size: 3.11”, 3.42”, and 3.86”
•Phase: single

Application
•Office equipment/business machines
•Heating and cooling equipment
•Medical equipment
•Electric actuators
•Pumps and valves

Features
Frame Size3.11"
PhaseSingle
Pôles2 and 4 pôles
Max. Torque2.1 Lb-in
Max. Output1/15 HP (50W)
Insulation ClassF(155°C)
Operating Température-10° C to +40° C
Bearing TypeBail Bearings
Shaft MaterialStainless Steel
Cul File#E333270
OptionalBrakes and gearboxes

Parameter Name	Parameter Value
AC/DC	AC
Type	asynchronous
Voltage (V)	220 - 230
Configuration	with brake
Number of poles	2-pole 4-pole
Applications	for pumps for medical equipment
Other characteristics	with gearbox low-noise custom
Power (W)	37 - 200 75 - 75 186 - 186 200 - 200
Rotational speed (rpm)	1370 - 3200
