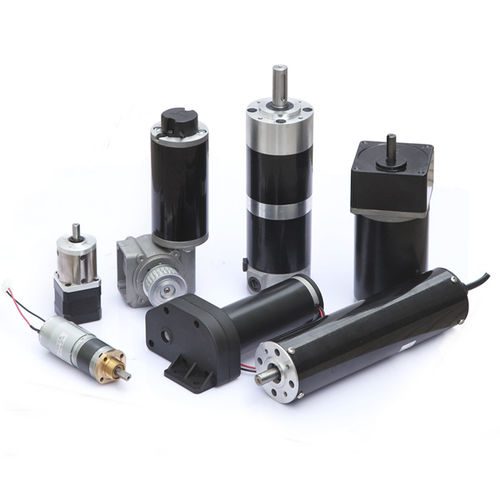

DYD Gear Motor Series
Gearbox Available: Spur Gearbox, Worm/Right Angle Gearbox, Planetary Gearbox

Motor type: Brushed DC Motors / Brushless DC Motors / Permanent Magnet DC Motors / DC Spindle Motors /Stepping Motors / AC Motors

Optional: Encoder / Brake / Connector / motor rear shaft

Customized shaft & flange dimensions and technical data are available

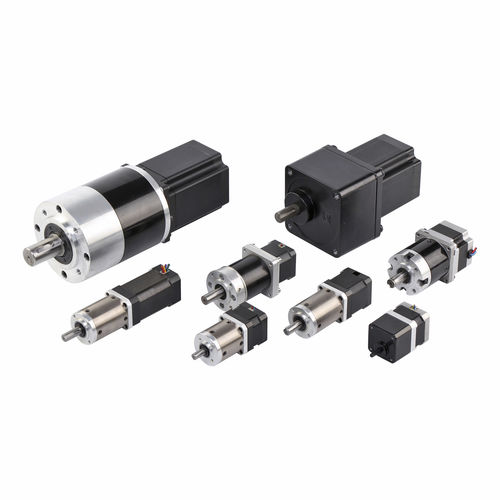

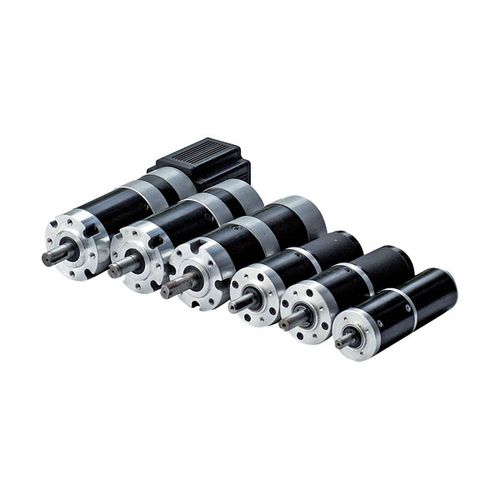

1) Planetary Gearmotors
Gearbox Frame ( OD ): 22JX, 24JX, 28JX, 30JX, 32JX, 36JX, 40JX, 42JX, 45JX, 48JX, 56JX, 60JX, 72JX, 80JXZ, 82JX, 92JX, 110JX, 120JX.
Gear Ratio: 3.6 : 1 ~ 2000 : 1
Motor Type: Brush DC Motors, BL DC Motors, Stepping Motors, AC Motors
Rated Torque up to 1000N.m
Protection up to IP68

2)  DC / AC Right Angle/Worm Gear Motors
Gearbox Frame: 50JW, 63JW, 70JW, 73JW, 90JW, 102WJ, 108WJ, 122WJ, 130WJ, JW-3, JW-5, RV030, RV040, RV050, RV063, RV075, RV090
Motor OD: 42MM ~ 170MM
Rated Torque up to 500N.m
Rated Speed: 1 ~ 700RPM
Protection up to IP66

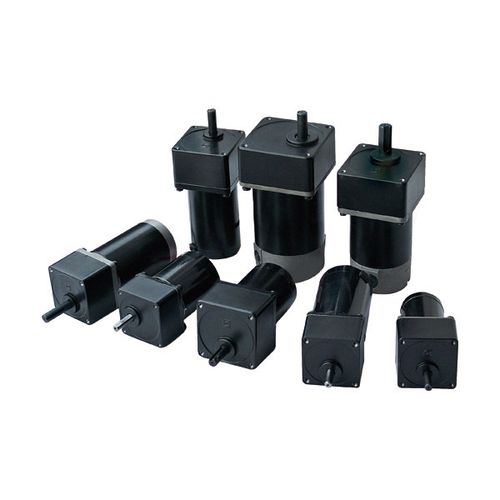

3)  DC / AC Parallel Shaft/Spur Gear Motors
Gearbox Frame: 25JB, 37JB, 42JB, 60YJB, 60JB, 65JB, 70JB, 80JB, 90JB, 104JB, 105JB, 123JB, 140JB, 160JB, 176JB, 180JB
Rated Torque up to 250N.m
Rated Speed: 2 ~ 700RPM
Protection up to IP66

4) DC / AC Motors
DC Motor Frame ( OD ): 36ZY, 38ZY, 42ZY, 45ZY, 50ZY, 52ZY, 54ZY, 60ZY, 63ZY, 71ZY, 73ZY, 76ZY, 80ZY, 85ZY, 90ZY, 96ZY, 104ZY, 110ZY, 118ZY, 130ZY, 160ZY, 170ZY
Rated Speed: 500 ~ 17000RPM
Rated Power up to 4500W
AC Motor Size ( Sq. mm ): 42, 60, 70, 80, 90, 100
Rated Power: 4 ~ 200W
2, 4, 6 poles motors

6)Special Motor Applications
Tarp Gear Motors
Door & Gate Motors
Curtain & Window Opener Motors
Robot Pool Cleaner and Automatic Pool Cover Motors
Solar Tracking System Motors
Garden Tools

Parameter Name	Parameter Value
Motor type	DC AC permanent magnet induction brushless
Type	planetary worm bevel spur helical magnetic
Shaft orientation	coaxial parallel-shaft right angle
Shaft configuration	solid-shaft
Power (W)	100 - 500 10 - 50 50 - 100 0 - 10 500 - 1000
Voltage (V)	24 - 12
Torque (Nm)	5 - 10 1 - 5 10 - 20 20 - 50 0.5 - 1 500 - 1000 0.2 - 0.5 50 - 100 0.1 - 0.2 0 - 0.1 100 - 200 200 - 500
Performance	high-torque high-efficiency high-power low-noise high-performance high load capacity
Product applications	for automation for industrial applications industrial for medical equipment for vehicles for the food industry for conveyors for automatic doors for door lock for metallographic samples for automatic distributors for lifting applications for the packaging industry for pumps for pharmaceutical applications for power steering for measurement instruments for trolleys for sliding doors for stairlifts for roll-up doors for hospital beds for the cement industry for automobiles for heavy-duty applications for agricultural applications for electric vehicles appliance industrial door for lawn-mowers for robotics for welding machines for sliding gates for packaging for robots for solar tracker for hazardous areas for the chemical industry door with encoder cleaning machine for trucks washdown for seat adjustment for machine tools window for blinds for conveyor systems for the paper industry for home appliances for machines for heavy loads for trailer landing gear
Certifications	CE OHSAS 18001 ISO 9001 ISO 14001
Other characteristics	low-noise compact permanent magnet high-torque custom solid-shaft hollow-shaft with encoder submersible precision micro shaft-mounted
Gear ratio (unit)	3 - 5000
Operating temperature (°C)	-40 - 120
