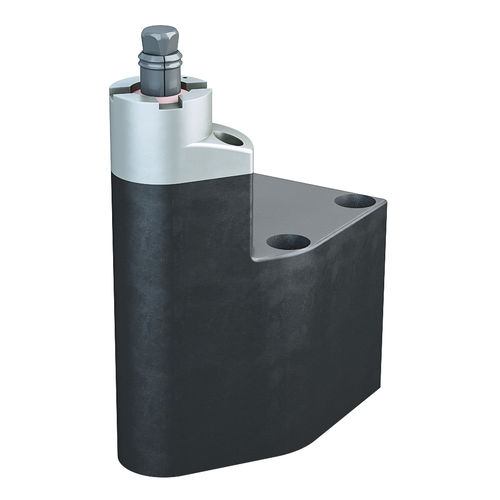

The hydraulically-operated bore clamp is particularly suitable for clamping in workpieces
with smooth bore holes in the support surface ranging from 8 to 12 mm in diameter. The workpiece is put directly onto the hardened surface of the bore clamp and will not be deformed during clamping. Since clamping is effected within the bore, the remaining surfaces are free for machining on 5 sides.

Advantages
● Axial clamping in simple smooth bore holes
● Machining from 5 sides is possible
● Compact eccentric design for limited space

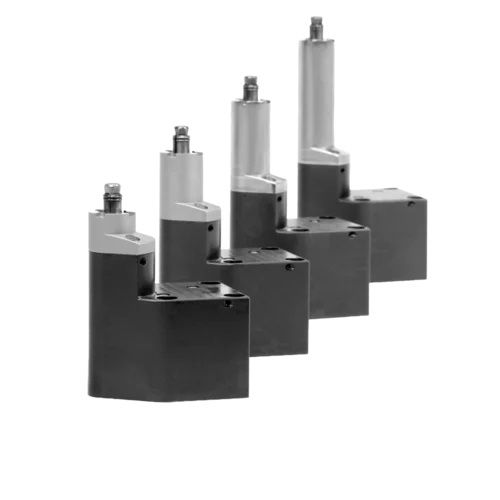

● Different support heights
● Hardened support height
● Easy exchange of clamping bushings and tie bolt
● Corrosion-protected components
● 3 pneumatic monitoring functions can be connected
● Separate connection for positive air pressure protection
● Hydraulic and pneumatic supply via drilled channels
● Integrated bleeding screws
● Mounting position: any

Pneumatic seat check and clamping Monitoring
bore holes Ø 8 – 12 mm
double acting
max. operating pressure 120 bar

Parameter Name	Parameter Value
Type	hydraulically-operated
Applications	for countersinking
Other characteristics	double-acting compact flanged eccentric
