The Surface Display Pro’ has been designed to provide a remote method of displaying the structure to electrolyte readings obtained from the BathyCorrometer® Pro’ on the surface.


The Surface Display Pro’ (which would typically be on board a ship or on a platform) connects to the BathyCorrometer® (being used underwater by a diver) via a robust, two core water resistant cable of suitable length (supplied separately). Using a 4-20mA signal, the structure to electrolyte potential value shown on the BathyCorrometer® is mirrored on the Surface Display Unit, allowing for quick and easy verification of the structure potential.

It is recommended that the Surface Display Unit (SDU) is purchased with the BathyCorrometer® it is going to be used with, this allows both units to be checked working together.

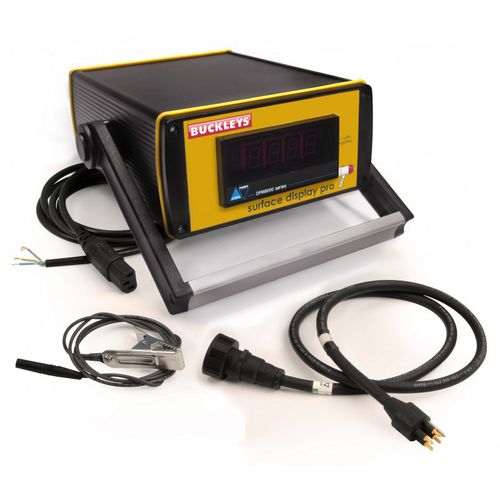

Kit contains:
• Surface Display Pro’ unit
• mains supply lead
• calibration leads from BCM to SDU
• full instruction manual

Also required:
Two core connection (umbilical) cable (length to customers requirements)
Note: The Surface Display Unit is not suitable for use with old Roxby BathyCorrometers, those fitted with Buckleys Retrofit kits or early Buckleys units. Contact Buckleys for advice.

Technical specifications:
Power supply: 110 to 230V AC
Power consumption: 8VA
Display: 4 digit LED
Accuracy: 0.05% of reading
Resolution: 1 in 9999
Temperature stability: 50 ppm of range/°C
Speed of response: Display = 2.5 / sec
Operating temperature: -20 to +50°C
Storage temperature: -40 to +85°C
Weight (unit): 1.6Kg
Dimensions (unit): 155mm x 85mm x 265mm
Packed weight: 3.2Kg
Dimensions (packed): 37cm x 31cm x 30cm

Parameter Name	Parameter Value
Type	corrosion
Applications	subsea
Other characteristics	remote robust
