1230N5M

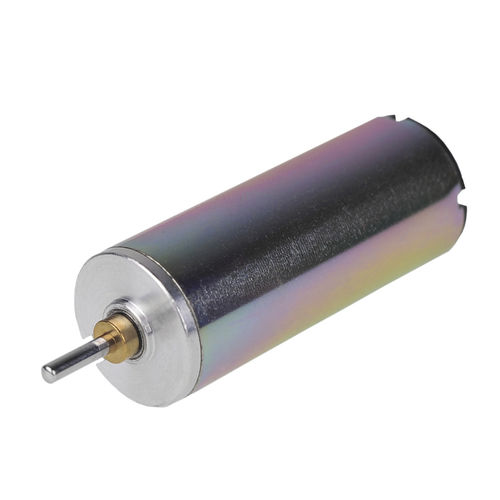

1230 12V Micro DC Coreless Motor

Diameter：12mm Length ：30mm Voltage：5.3V 、12V、24V Max. Output Power ：0.52W Speed：4450-11300rpm

Applications
Medical equipment and devices, healthcare products, automotive, robotics, and industrial automation

Options
Lead wires length、Shaft length、Special coils、Gearheads

Unit Price
Price upon request

Parameter Name	Parameter Value
AC/DC	DC
Type	asynchronous
Voltage (V)	24 - 12
Configuration	coreless micro
Applications	industrial for medical equipment for robotics for the automotive industry
Power (W)	0.52 - 0.52 2.4 - 2.4 3.36 - 3.36
Intensity (A)	0.09 - 0.18
Torque (Nm)	0.0009 - 0.0009 0.003 - 0.003 0.0037 - 0.0037
Rotational speed (rpm)	3550 - 3550
Diameter (mm)	12 - 12
