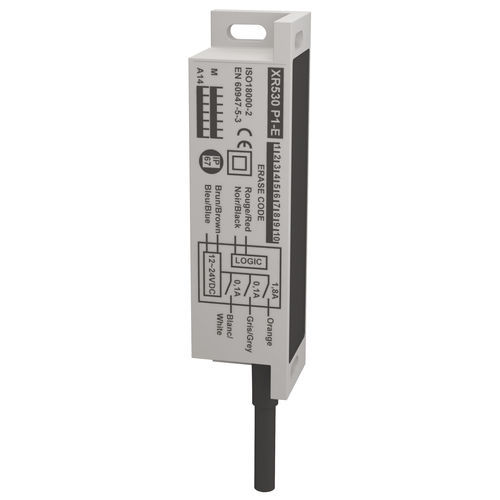

Card access control with RFID encoding

RFID sensor with 16 million codes
Lock control and two alarm levels
Programmable code through auto-learning (no software or PC)

• Switching cycle: B10 = 1 million
• Max activation distance: XR 530P up to 25 mm
• Contact/diagnostics: 1 x 1.8A PNP timed 5s/2 x 200m APNP
• Alarm 1 (120s failure to close) and 2 (30s breaking open)
• Duration of alarms editable upon request (XR530P, P1 ... P10)
• Detection encoding: 16 million
• Indicator: LED indicates code recognition
• Optional erasing card to reassign new codes
• Encoding of geographic location: (base + E1 to E10) Reset : automatic
• Attachment: 4 tamper-proof M4 screws (in base option: BH4)
• Mounting position: 2 (double wall brackets)
• Material: PA6
• Electrical Connection: 3, 6, 12m (UL2464 PVC)
• Sealing: IP 67
• Temperature: -25 °C to +70 °C.
• Marking: pad printing + serial number for traceability
• Option: badge nail, screw, plate screw, key chain, card ... etc.
• Application example: access to luxury showcases with lock control

Parameter Name	Parameter Value
Configuration	corded
Connector type	with PC interface
Detection distance	25 mm (0.98 in)
