Auxiliary control
1 to 20 buttons
Single-row
Modular And Individual
Plastic enclosure
Display, Selctor Switch, Potentiometer etc.
22,5mm panel cut-out

From 1 up to 20 buttons, everything is possible!

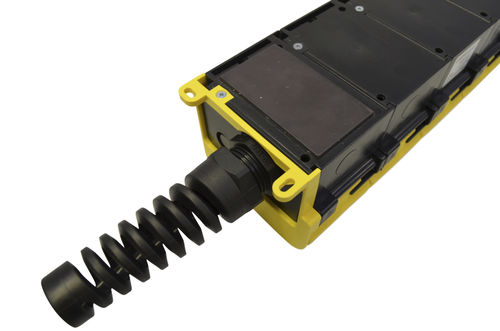

The new pendant station series KAPPA is a modular single-row push-button station for auxiliary circuits. The design is a result of new requirements within the market. Maintenance and changing of contact elements are simple to realize.

In designing the product particular attention was paid both to easy handling features and technical aspects, in order to ensure usage also in heavy-duty circumstances. All materials in direct contact with the environment are resistant to gas, oils and extreme temperature changes. The rubber gaskets ensure optimal protection against dust and liquids, thus the protection degree of IP 65 is ordinary reached.

Series Kappa consists of one-button-elements. Every element is available in black, blue, white and yellow. Every element is equipped with 22,5mm panel cut-outs. Selector switches, emergency buttons, push buttons and signal lamps can be placed in. Every element offers space to place engravings cost-efficiently. Cable entries and hook are possible on bottom or top of the pendant station.

Parameter Name	Parameter Value
Type	corded
Control interface	with configurable buttons, joystick, with toggle switch
Number of buttons	10-button, 12-button, 18-button, 2-button, 24-button, 3-button, 4-button, 6-button, 8-button
Features	on/off, with emergency stop
Protection level	IP65 rugged
Product applications	for crane industrial for lifting equipment for trucks for furniture for pumps for overhead cranes for gates for machines for machinery for agricultural applications construction for hoists for doors winch
Other characteristics	compact safety for harsh environments custom multifunction
