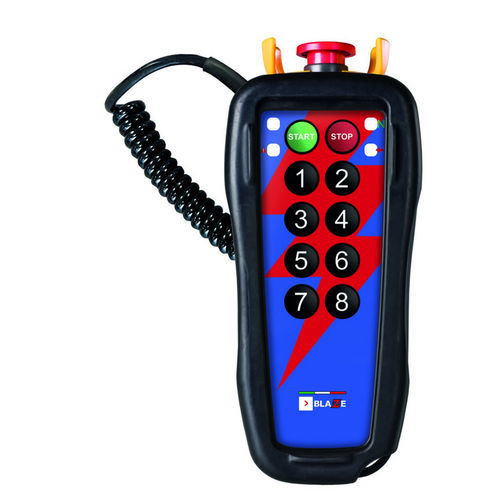

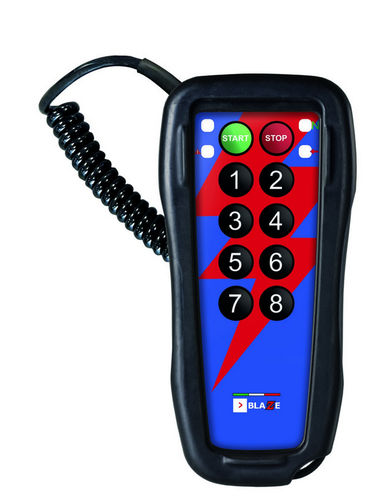

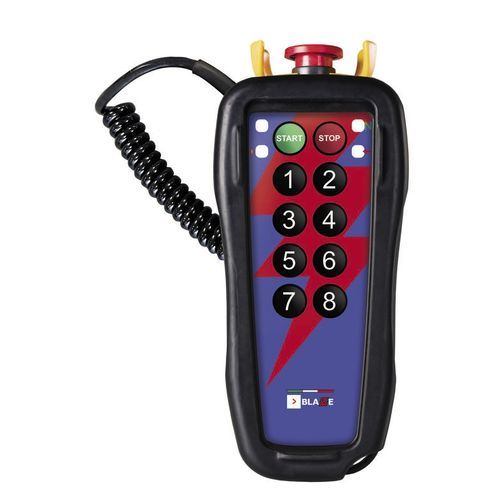

Top of the wired remote controlled range, the standard version comes with START & STOP keys, an 8-key backlit keyboard and a 10-wire 60 cm spiral cable that extends up to 2 meters. Even without the Emergency 'Mushroom'!

DESIGN

The high-strength plastic material is co-molded with a rubber shell to make the grip more solid and protect from accidental falls, even from a height of 4 meters. Operation is guaranteed from -20°C to +55°C.

KEYS

Silicone rubber keyboard with 8 keys of 10mm diameter suitable for all users. In addition, the keyboard is backlit, ideal for operating in low-light conditions. START & STOP functions are standard.

LED

4 LEDs indicate the presence of power supply (green), the digital input (red), extra current anomaly (yellow) and a white LED that flashes from pressing START to the end of activities.

RECEIVER

It does not require a controller on the vehicle but connects directly to the utilities without a connector (free wires).

SAFETY & PROTECTION

-Mushroom Emergency Button
-Customizable cable length
-START & STOP functions
-Maintained Function (M): the operation is carried out only if the relative key is kept pressed. If released, the operation stops.
-The system turns off the output if the maximum allowed load is exceeded and signals it with the flashing "on" LED.
-Protection against short circuits, overcurrents and reverse voltages. The integration of recirculation diodes on the outputs makes the device particularly suitable for direct driving of inductive loads, such as solenoid valves and solenoids.

Parameter Name	Parameter Value
Type	corded
Control interface	with buttons
Number of buttons	8-button
Features	with emergency stop, on/off
Protection level	rugged
Product applications	industrial for trucks winch for marine applications for forest harvesters for boats for hooks for hydraulic applications for wheelchairs for wheel loader
Other characteristics	safety
Reach (mm)	2000 - 2000
Length (mm)	180 - 180
Width (mm)	80 - 80
Temperature	Min.: -20 °C (-4 °F)Max.: 55 °C (131 °F)
