HP-C-VE - Optical Probe - Bringing vision to your CMM

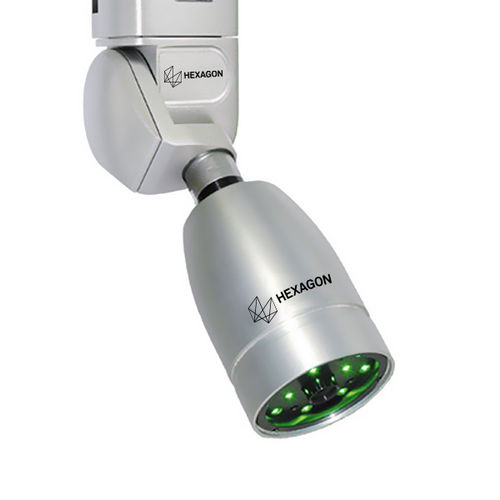

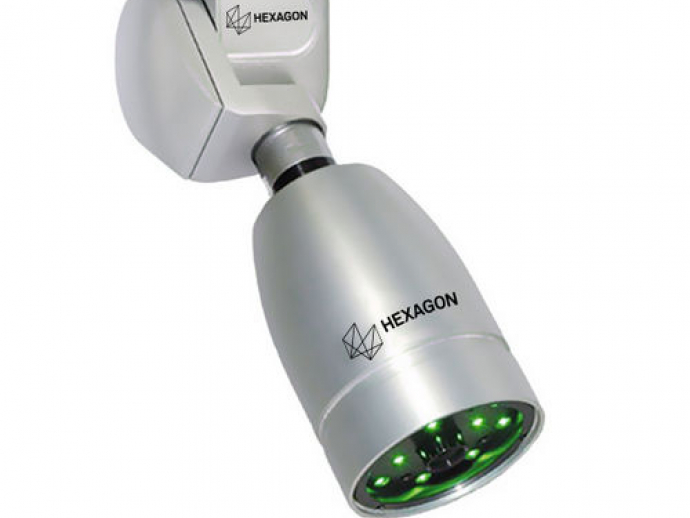

HP-C-VE is a camera for use on a CMM. The 2D light sensitive CCD and the integral LED illumination allow an area of the measured component to be illuminated and viewed. This gives the capability of optical measurement for large scale components.

The whole Field of View (FOV) or specific Regions of Interest (ROI) within the FOV can be used to select one or more features for measurement (e.g. hole diameters, edge positions). Software control of the illumination allows the user to optimise the image for each measurement.

Typical HP-C-VE applications:

Small features which are difficult to probe with tactile styli
Soft or easily deformed components
Printed or deposited patterns
Printed circuit boards

Features & Benefits

Auto change between the HP-C-VE and other traditional CMM sensors
Compatible to HH-A and HH-AS probe heads
Integral software-controlled illumination.
Compatible with HR-R changing rack
Provides vision measurement capabilities for large components.

Parameter Name	Parameter Value
Applications	for coordinate measuring machines
