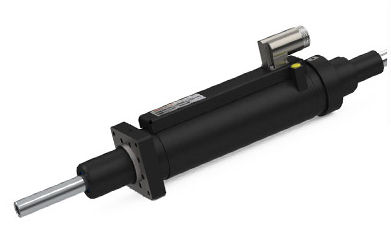

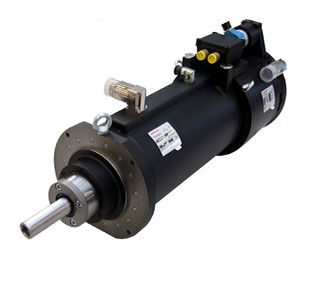

Cooled linear motor LP/TF Series

Cooled linear motor LP/TF Series

Cooled linear motor LP/TF Series

About


CHARACTERISTICS
Electric direct drive
Separate controllable
Mechanical rigidly coupled
Optional hollow shaft
Fast acceleration
High maximum torque
Extremely quiet
No gear reduction, no backlash
Free of shear forces
We will be happy to adjust the electrical and mechanical design elements according to your requireme

FEATURES OF OSWALD MOTORS
Compact, robust, high power density
Maintenance-free / low maintenance
Low inertia, dynamic
Long useful life

TECHNICAL SPECIFICATIONS
S1 forces + torque:1000 to 20.000 N
10 to 500 Nm
Speed:up to 500 min-1
Acceleration:bis 3 m/s
Swing:up to220 mm
Cooling:Air or liquid



PARAMETERS

Parameter Name Parameter Value
Other characteristics
  • cooled
  • liquid-cooled
  • direct-drive
  • with electronic control
Speed (mm/s)
0 - 3000
Force (N)
1000 - 20000
