Integrated touch panel, scratch-resistant, anti-glare
LED illumination blue-white or yellow/green
many character sets incl. 8-times zoom function
High-level graphics functions (straight line, bar chart, menu)
RS-232 or RS-422, 5V/12V/24V supply voltage
Macro programming, storage of images and text
16 digital inputs and outputs with optocouplers as accessories
Available immediately

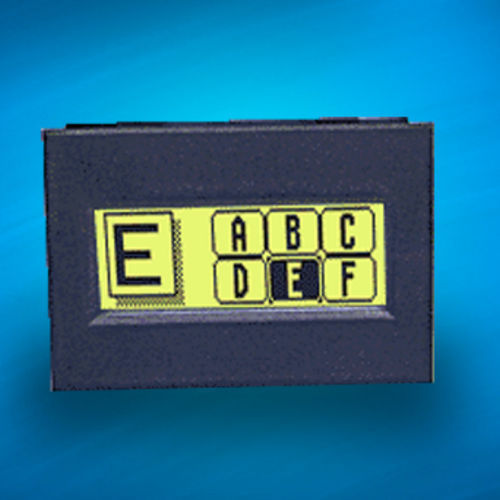

Various sizes from 120x32 up to 320x240 dots
Windows® simulator software for demonstartion and development

Brief description

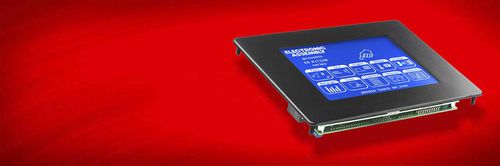

The EA KIT120-5LEDTP graphics kit (see photo above) is a fully assembled control from 2,4" to 5,9" and operating unit with a variety of integrated functions. As well as offering excellent super-twist contrast, the compact display can be put into operation immediately. It is controlled via the standard RS-232 or RS-422 interface. In addition to complete graphics routines for display output, the graphics kit also contains a wide variety of fonts.
High-level language-type graphics commands are used for programming. There is no longer any need for the time-consuming programming of character sets and graphics routines. There's no need for any driver software or programming tools. The ease of use offered by macros and input via touch panel make it a real power display. Have a look at the colored flyer!

Hardware
The graphics kit is designed to work with an operating voltage of +5V. A supply voltage of +9..36 V is also possible. Serial asynchronous data transfer is carried out in RS-232 or RS-422/RS-485 format. The transmission format is set permanently to 8 data bits, 1 stop bit and no parity. Baud rates between 1200 bps and 115,200 bps can be selected by means of DIP switches.

Parameter Name	Parameter Value
Applications	with display
