About

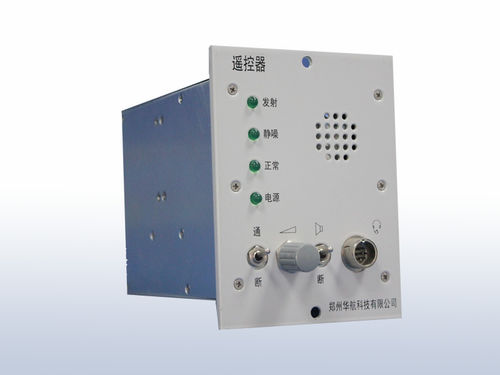

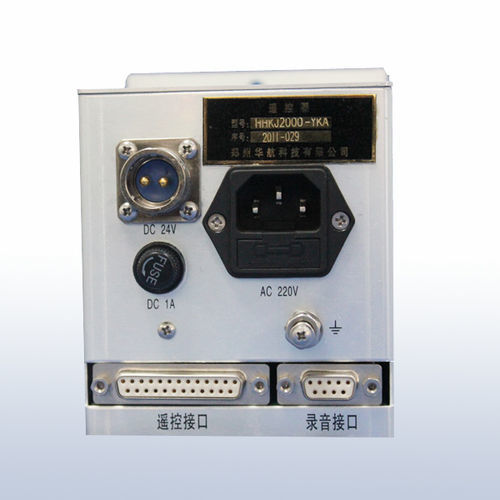

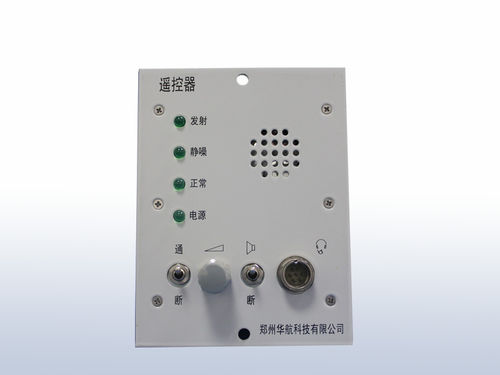

HHKJ2000-YKA Audio applies to control tower or airway command. If interfaced into VHF transceiver directly, the controller can realize controlling the transceiver in short distance. If connected with transmission equipment like PCM via HKADP AF Distributor, it can realize controlling the transceiver in long distance.
Technical Data
Transmit
*Line output level: -16 dBm ～ 0 dBm，600 Ω
*Audio distortion: ≤2%
*AF response: ≤±2 dB（300 Hz ～ 3.4 kHz， refer ～ 1kHz）
Receive
*Line input level: -16 dBm ～ 0 dBm，600 Ω
*Audio distortion: ≤3%
*AF response: ≤±2 dB（300 Hz ～ 3.4 kHz， refer ～ 1kHz）
*Loudspeaker output level: ≥0.5 W，8 Ω
Temperature range
*Operating temperature: -20℃ ～ +65℃
*Storage temperature: -40℃ ～ +85℃
*Communication distance: ≥50m
*Dimensions: 1/4 19”（3U） 100 mm × 132 mm × 175 mm（W×H×D）
*Weight: ≤1kg
