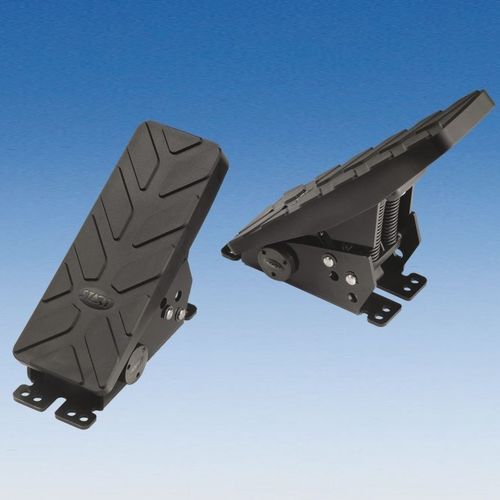

ELECTRONIC PEDALS
FLOOR-MOUNTED MECHANICAL COMPONENT AND ORDER FORM

Characteristics:

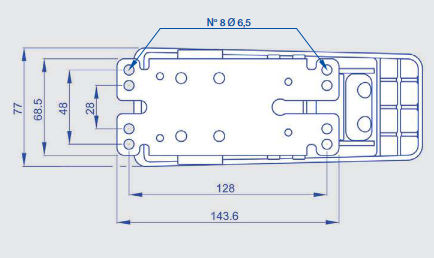

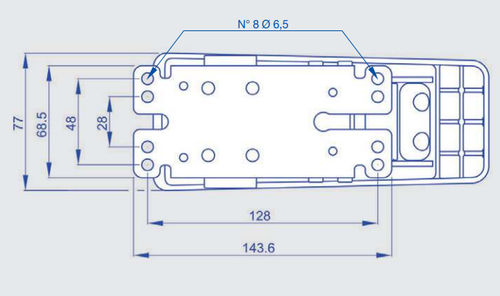

Assembly: Koor-mounted Fastening type: with M6 screws

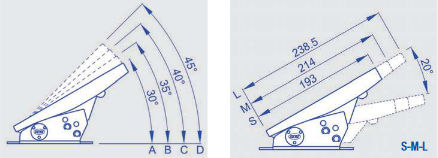

Operative angle: 20°
Opening angle: 30° - 35° - 40° - 45°
Footrest length: short - medium - long
Pedal return: double redundancy spring
Footrest material and colour: black reinforced resin Pedal support material: metal
Support surface treatment: white zinc plating or black cataphoresis

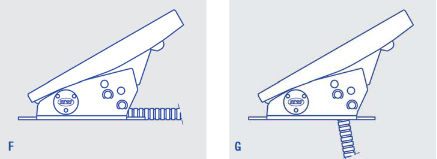

Electric cables outlet: at the front or at the bottom

Parameter Name	Parameter Value
Function	control
Technology	mechanical electronic
Type	single pedal
