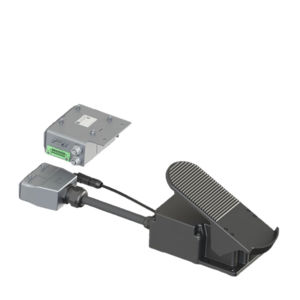

Gessmann’s foot operated pedal PP7 is specially designed for usage in railway applications.
Their robust design which is based on the relevant standards EN-60077 and EN-50155
guarantees low life cycle costs and a maintainability for a period of 35 years.

Technical data
Ambient temperature outside vehicle -40°C to +50°C -> EN 50 155 Class T1, T2, T3, TX
Nominal supply voltages 24VDC with variations according to EN 50155
Shock and vibration According to EN 61373
Electromagnetic compatibility (EMC) According to EN 50121-3-2
Isolation and high voltage test According to EN 50155
Pollution degree PD 3 according to EN 60077-1 (others on demand)
Fire and smoke Compliant to EN 45545 (others on demand)
Mechanical endurance 10 million operating cycles
Electrical endurance Minimum operating cycle class C3/A3
According to EN 60077-2



PARAMETERS

Parameter Name Parameter Value
Function
control
Technology
electric
Type
single pedal
Other characteristics
rugged
Applications
for railway applications
