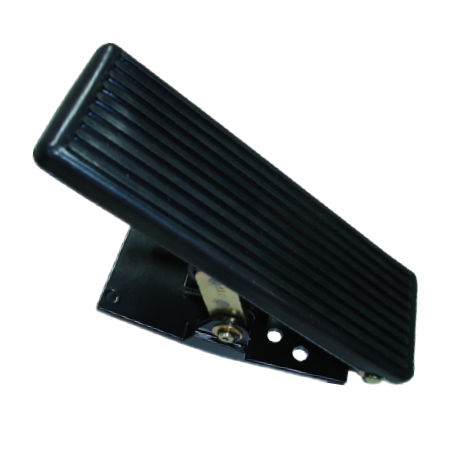

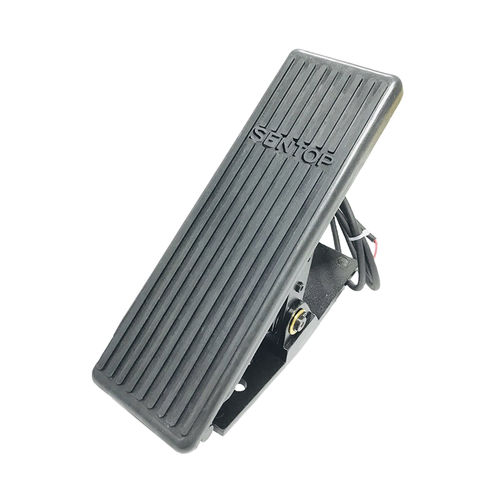

HC70FCA Series Pedal

- Hall effect IC Type Heavy High reliability Vibration environment
- Approx. size of base housing: 70mm
- Single signal output, dual syntropy signal ouput, dual cross signal output
- Input 5V, output 0.5~4.5V; Input 5V, output 0~5V; Input 15~30V, output 0~5V; Input 15~30V, output 0~10V; Input 15~30V, output 4~20mA;

General Specifications
- Operating angle: Approx.22°
- Operating force: 15N~27N
- Mechnical life expectancy: 5,000,000 operations
- Operating temperature range: -20℃~+70℃
- Storage temperature range: -20℃~+70℃
- Viration: 10~55Hz 98m/s2
- Shock: 294m/s2
- Protection grade: IP54

Electrical Specifications (potentiometer)
- Input 5V, output 0.5~4.5V; Input 5V, output 0~5V; Input 15~30V, output 0~5V; Input 15~30V, output 0~10V;
- Load resistance: >10KΩ
- Effective electrical angle: Approx. 60°
- Independent linearity tolearance: ±2%
- Resolution: 4096 (12bit)
- Update rate: 0.3ms
- Dielectric strength: 1min at 500V.D.C
- Insulation resistance: >1,000MΩ at 500V.D.C

Special Specifications
- Available for special output charcteristic, special cable length, etc..

The pedal can be customized in accordance with your special requirements.
For other special requirements, please contact us at trade1@sakae.cn

Parameter Name	Parameter Value
Function	control
Technology	Hall effect
Type	single pedal
Other characteristics	rugged compact with cover corrosion-resistant IP67
Applications	for vehicles for railway applications
