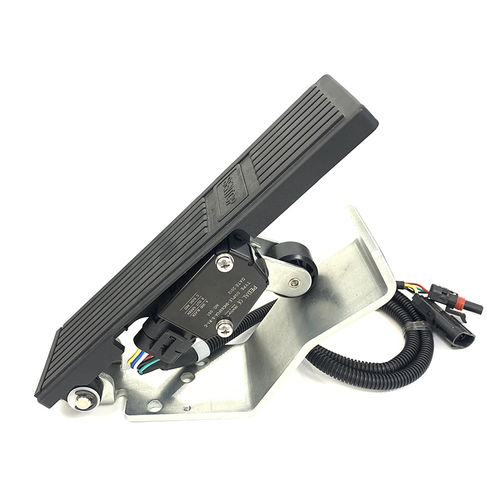

HC60FCA Series Pedal

- Hall effect IC Type Low-cost Vibration environment
- Approx. size of base housing: 60mm
- Single signal output, Dual syntropy signal ouput, Dual cross signal output
- Applied voltage 5V, output range 0~5V
- Protection grade IP66

General Specifications
- Operating angle: Approx.17°±2°
- Operating force: 40N~50N
- Mechnical life expectancy: 10,000,000 operations
- Operating temperature range: -40℃~+85℃
- Storage temperature range: -50℃~+120℃
- Protection grade: IP66

Electrical Specifications (Hall effect contactless potentiometer)
- Applied voltage: 5V±10%
- Output signal: 0~5V -
- Current consumption (no-load): ≦20mA
- Independent linearity tolearance: ±2%
- Resolution: 4096 (12bit)
- Update rate: 0.3ms

Special Specifications
- Available for special outout range.

The pedal can be customized in accordance with your special requirements.
For other special requirements, please contact us at trade1@sakae.cn

Parameter Name	Parameter Value
Function	control
Technology	Hall effect potentiometer
Type	single pedal
Other characteristics	rugged compact with cover corrosion-resistant IP67
Applications	for vehicles for railway applications
