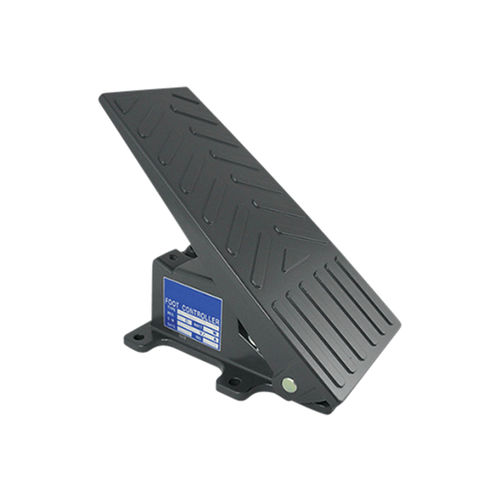

H80FCL Industrial Footpedal
Floor-mounted industrial footpedal with incorporated potentiometer and a hall effect IC type resistive element

About the H80FCL Industrial Footpedal
Floor-mounted industrial footpedal with incorporated potentiometer and a hall effect IC type resistive element

Features H80FCL

Stepping pedal type
IP65
Incorporated hall effect contactless potentiometer

Specifications

Operating method
Stepping pedal type
Operating angle
Approx. 20°C
Operating force
Standaard automatic spring return device Abt. 10N • 60N (Abt. 1.000gf.~6.000gf.)
Operating temperature range
-20°C ~+65°C
Vibration
10~55Hz 98m/s²
Shock
294m/s²(11ms)
Life expectancy
Approx. 2.000.000 operations
Mass
Approx. 850g
Hall effect IC type potentiometer is incorporated
Applied voltage: 5V±10%D.C.
Output range: Approx. 10%~90%Vin
Independent linearity tolerance: ±3%
Dielectric strength
1 minute at 250V.A.C.
Insulation resistance
Over 100MΩ at 250 VDC
EMS durability
100V/m(80MHz~1GHz 1KHz sine-wave 80%AM modulation)
ESD durability
±8KV contact discharge/±15KV aerial discharge (Based on IEC61000-4-2)

Parameter Name	Parameter Value
Function	control
Technology	Hall effect potentiometer
Type	single pedal
Other characteristics	IP65
