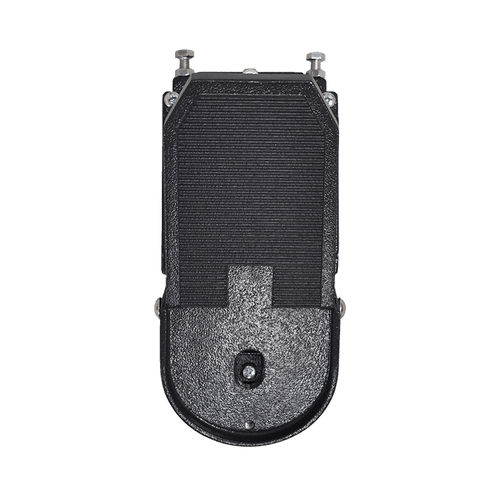

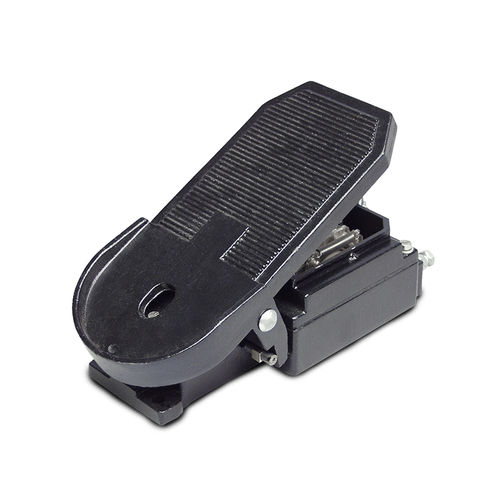

FP1 Foot pedals feature rugged sealed construction and are suitable for providing precise control in high duty cycle applications.

Overview
• Aluminum cast construction
• Brass bearings
• Compression return springs
• Sealing to Nema 4
• Dark gray finish
• Step or proportional operation

Type
• Proportional

Output Options
• Contacts
• Potentiometer

Applications
The FP1 Foot Pedal is most commonly utilized in high-duty cycle process control applications in industrial settings. Typical applications include:

• Rolling lines in steel mills
• Crane brake
• And more

Industries
• Forestry
• Mining
• Marine
• Ports
• Steel
• Waste & Recycling
• Wood & Paper

Mechanical:
• Expected Mechanical Life:
10 Million Operations
• Operating Temperature: -25°C to +70°C
• Cam Shaft Rotation: 135à°
• Pedal Movement: 25°
• Gear Ratio: 5.4:1
• Pot Electrical Angle: 1 x 125°

Electrical:
• Max Switching Capacity:
a) Making: 100 amps
b) Breaking: (0.7PF) 240 VAC 80 amps

• Contacts: (3) Double Pole, “Snap-In” blocks.
Consult factory if additional circuits are required.
Consult factory for gold dry circuit contacts.

• Terminals: M3.5 x 0.5 Machine screw with
saddle clamp.

• Wire Size: #12 AWG. Maximum

• Rating:
a) Continuous 16 amps @ 240 VAC
b) Resistive 8 amps @ 240 VAC
c) Inductive 6 amps @ 240 VAC
d) 1 H.P. 120 VAC 1 phase
e) 2 H.P. 240 VAC 1 phase

• Potentiometer:
o 0.5 watt, 5 million cycle conductive plastic
furnished standard.
o 3 wire or 10k 4 wire CT
o Rotation 135

Parameter Name	Parameter Value
Function	control
Technology	potentiometer
Type	single pedal proportional
Other characteristics	rugged
