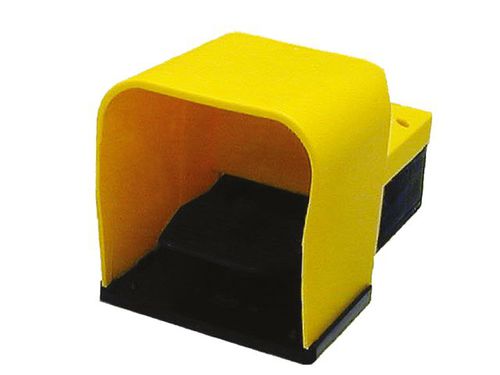

SENGA's pneumatic foot switches are available in several versions:
with maintained impulse and spring return,
with maintained impulse, spring return and locking
with maintained impulse, spring return and operating safety

With a robust body made of impact-resistant acetalic resin, these pneumatic foot switches also have a 1/4" BSP cyl. female pneumatic connection.

The pedal switches are suitable for operating temperatures from -10 to +50°C and operate at a compressed air pressure of 2 to 10 bar.

Parameter Name	Parameter Value
Function	control security
Technology	pneumatic
Type	single pedal maintained
Other characteristics	with cover corrosion-resistant anti-trip
