CategoryPedal switches
SeriesPedal switch KEF
Protection classII (protective insulation)
Degree of protectionIP00
Switching functionmomentary action
Travel6 mm
Illuminationno
With labelling optionno
Contact equipment1 NC + 1 NO
Connection typescrew connection 2x2.5 mm², finger-protected acc. to BGVA3
Colourred
Positive openingacc. to EN60947-5-1,appendix K
Operating temperature-30°C ... 70°C
Contact materialAgNi
Electrical lifeswitching cycles: 1 million at 250 V/10(6) A 250,000 at 250 V/16(10) A 500,000 at 250 V/5 A (AC15)
Storage temperature-50°C ... 70°C
Mechanical life1 million switching cycles

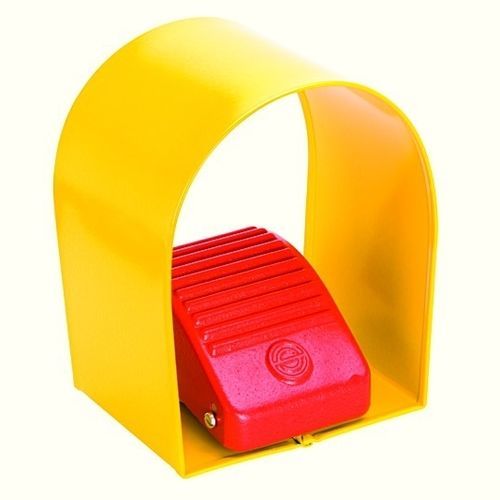

with red pedal and yellow protective cover made of steel sheet (powder-coated) other colours on request cable entry: 1x M16x1.5

Parameter Name	Parameter Value
Function	control
Technology	electric mechanical
Type	single pedal momentary
Other characteristics	with cover
