Compact Versatile Design

Features & Benefits

Remote switch equipped with a 9/16" U.N.F. bulkhead mount
Available in either momentary or maintained SPDT versions
Provides versatility in applications
Isolating the electrically live snap switch from the floor
Offers environmental protection from short or shock
2 holes provided for rigid Mounting to floor or equipment

Materials

Strong Steel Housing
Long Life Air bulb actuator mounted in Housing
Remotely located air operated Electric Snap Switch

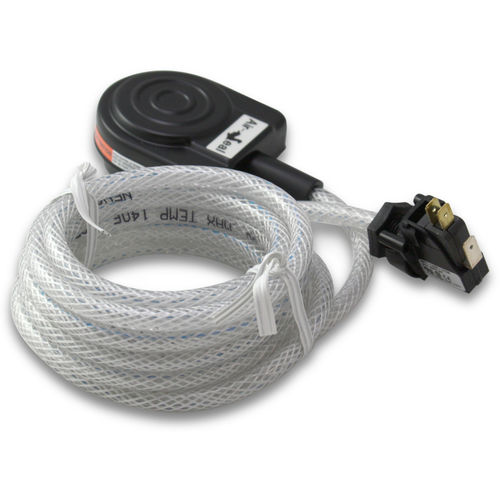

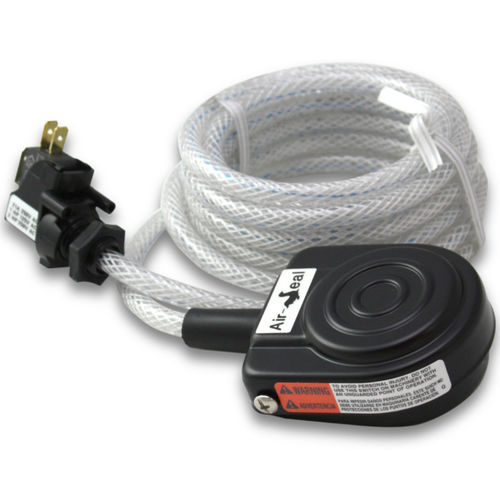

Supplied with a 10 foot 1/8" ID reinforced PVC tubing connecting the foot pedal to the remote air switch
The tubing is connected at the foot switch end using a molded on strain relief grommet providing superior pull out protection

Options

Momentary or Maintained models available
Mounting Plate Available
Black tubing (Non-reinforced)available
Twin model available on special order
Heavy gauge steel guard available

Applications

Pump
Sewer Cleaning Equipment

Parameter Name	Parameter Value
Function	control
Technology	electric electro-pneumatic
Type	momentary
Other characteristics	compact
