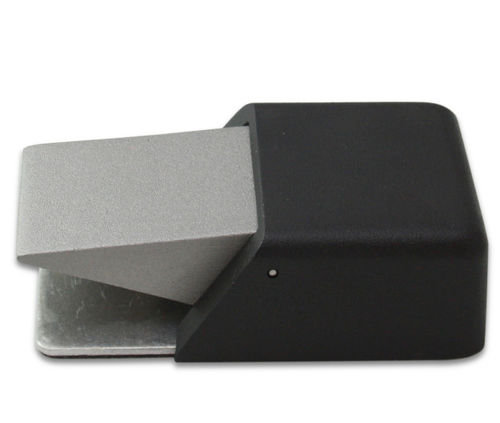

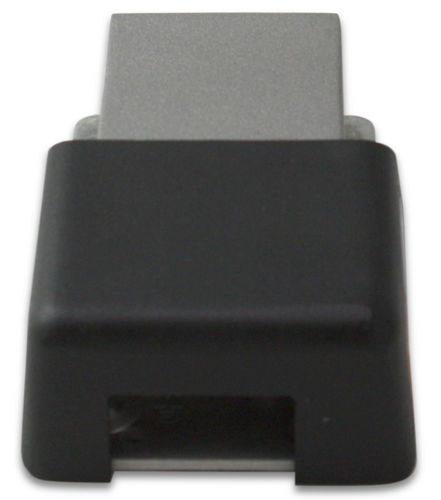

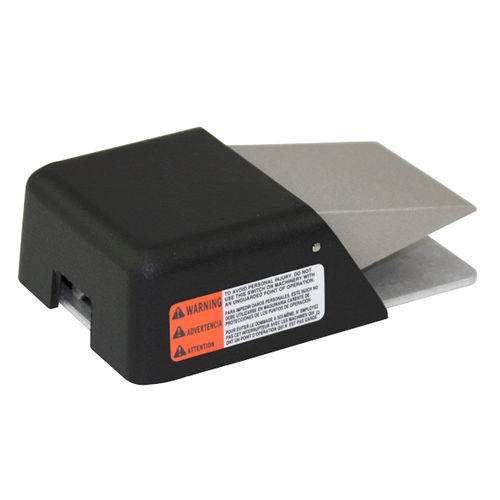

Long Treadle Throw Desgin

Features & Benefits

Nonskid Base Pad
Designed for long life operation
Two-Way models do not exhaust back pressure
Plunger can be depressed flush with valve body without damage to valve
Standard 1/8-27 N.P.T. input and output ports
Filtered and lubricated air supply is required for best operation
Line pressure up to 150 P.S.I.

Materials

Variable Flow design
Internal Valve is constructed of a Non-Ferrous body, Stainless steel plunger and Teflon coated buna-N O-rings
Air flows when plunger is depressed, stops flowing when plunger is released and exhausts back pressure on output side
Air exhausts around plunger
Versatility And Good Looks
Cast Aluminum Housing

Options

2-way, 3-way & Variable
Heavy gauge steel guard available

Applications

Cut & Form Machine for Transistors

Parameter Name	Parameter Value
Function	control
Technology	pneumatic
Type	single pedal momentary
