About
Mecanic and Design
Dimensions - 126 x 95 x 40 mm
Weight - ~118g

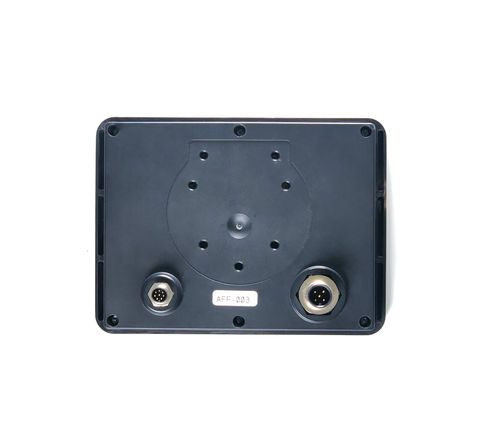

Communication connectors - TE M12 5 pin
Control connectors - TE M8
Working temperature - -40 °C ~ 85 °C
Security
Design - EMC et ISO 26262
Components - RoHS compliant
Alarm - Integrated Buzzer/Push notification (Wifi)
Alarm setting - Depending to current, temperature and voltage
Technical description
Display - SOC, current, temperature voltage for each cell and pack

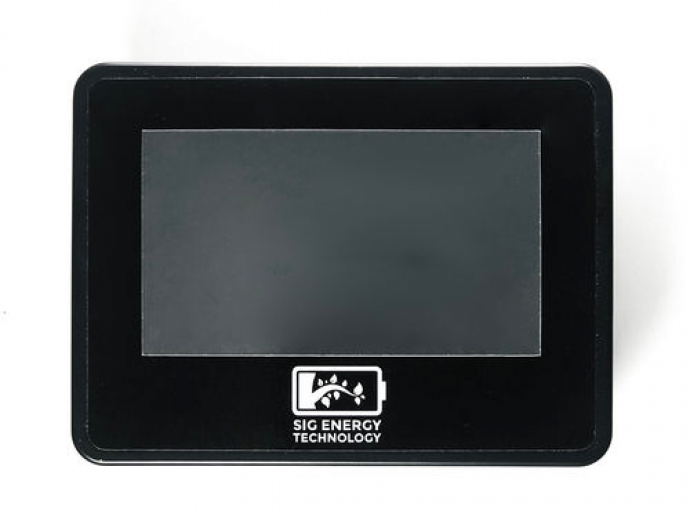

Screen control- Touchscreen
Batteries control - Monitoring, charge and discharge control
Powered - 4.3V to 60V
Defaults Display - Overcharge, undervoltage, temperature and communication
Data recording - on-line
Connectivity - Wi-Fi / Bluetooth (Website /Mobile application)
Communication protocol - CAN BUS (CAN 2.0/B) 62.5 KBPS
Applications - Stationary and marine
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
control
|
| Other characteristics |
|
