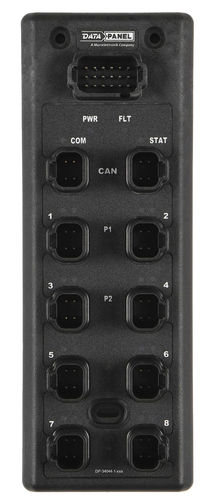

Our comment on "xtremeDB 8 inputs 8 outputs, SAE J1939"
The xtremeDB -1 (pronounced: "dash one") SAE J1939 module combines many different I/O signal configurations. It offers a total of eight inputs, up to four of which can be parameterized in analog. Two of the digital inputs can also be configured as frequency inputs or counters. At the same time, the module offers eight outputs, which can also be individually configured as digital, PWM or current-controlled PWMi outputs. The module can drive up to 26 A output current.

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	SAE J1939
Type	remote distributed
Applications	automation PLC
Number of inputs/outputs	16-I/O 8 digital inputs 4 analog inputs 16-channel 8 digital outputs with PWM output
Mounting	screw-in
Other characteristics	configurable IP67 IP65 IP69K robust IP68
