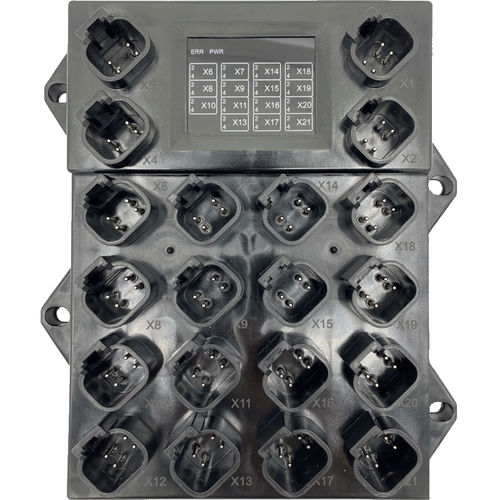

The xtremeBLOCK CANopen module combines many different I/O signal configurations. It offers a total of 12 inputs, eight of which can be parameterized as analog. The remaining four digital inputs can also be configured as frequency inputs or counters. At the same time, the module offers 14 digital outputs, most of which can be configured as PWM or PWM(i). The maximum output current of 7 A is sufficient to control even actuators with high power.

Fully potted IP69K CANopen I/O module with the proven 4-pole DT connection technology.
8 digital inputs or 8 analog inputs configurable and 4 counter inputs
4 digital outputs, 6 PWM outputs and 4 PWMi outputs
E1 approval | ISO 14982 | ISO 13766-2 | MTTF 87 years

Parameter Name	Parameter Value
Signal type	digital, analog
Bus	CANopen, CAN
Type	remote distributed
Applications	automation for control of hydraulic valves
Number of inputs/outputs	8 analog inputs multi-channel with PWM output 12-I 14 digital outputs
Mounting	screw-in
Other characteristics	configurable IP67 IP65 IP69K robust IP68 decentralized
