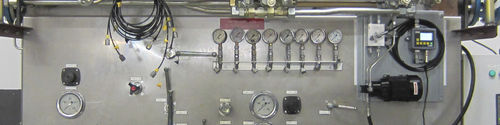

RMF Systems Condition Monitoring Center (CMC) combines technology to enable sampling on low pressure hydraulic and lubrication systems where aeration can be an issue. The CMC suppresses the air bubbles so they are no longer counted as particles. It also allows for continuous particle monitoring on systems where no oil pressure is evident.

The CMC can be installed in most low pressure hydraulic and lubrication systems ranging from zero bar pressure to a max of 50 bar on the inlet of the system. A further option can be installed on systems with a max of 0,5 bar on inlet of CMC pump and a max of 6 bar on system return. These two options give the user the versatility to install the CMC in a variety of different system applications. Also the Condition Monitoring Center can be designed with an integrated magnetic coupling. This option can handle inlet pressures of 25 bar and 25 bar pressure on the outlet of the unit. Utilizing the best particle counter in its class as standard, the CMC delivers simplicity, practicality & accuracy for the most demanding of applications. Proven optical technology and algorithms ensure consistent monitoring of your system, providing peace of mind for your operators.

Parameter Name	Parameter Value
Type	condition
Other characteristics	continuous
