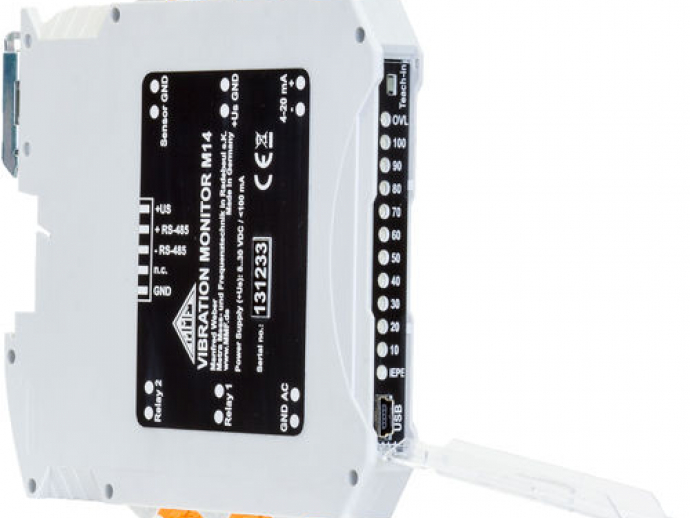

Universal Vibration Monitor

Application
• Vibration monitoring in time or frequency domain
• Monitoring of vibration velocity (severity) of rotating machinery to ISO 20816-1 (formerly ISO 10816-1) and reciprocating engines to ISO 10816-6.
• Monitoring of bearing vibration with frequency analysis
• Remote maintenance via RS-485 connection to PLC
• Visualization of machine condition via digital networks
• Emergency shut-off or alarm tripping in case of increasing vibration, e.g. at pumps, compressors, centrifuges, fans, mixers, mills etc.
• Production quality control

Properties
• Extremely flexible
• Setup and measurement via RS-485 bus at rear and front side
USB interface
• Monitoring of vibration acceleration or velocity
• True RMS and true peak measurement
• Programmable high pass and low pass frequencies
• 500 lines FFT with 10 free adjustable alarm bands for frequency
selective monitoring
• 2 Relay outputs with adjustable threshold for warning and alarm
• Teach-in function sets the warning / alarm limits automatically
based on the current vibration level / spectrum
• Insulated current loop output (4 .. 20 mA) for RMS or peak
• AC output for signal analyzers, recorders or scopes
• LED bar graph display for vibration signal and threshold
• Time-saving installation by snap attachment on 35 mm DIN rails
including connection of power supply and RS-485 via DIN rail
connectors

Parameter Name	Parameter Value
Type	condition level vibration
Applications	alarm measurement for electrical cabinets for process control for bearings for gear units for predictive maintenance for machines lubrication bearing for belt conveyors for pumps brake
Configuration	modular
Interface	RS-485 USB
Other characteristics	continuous digital individual
