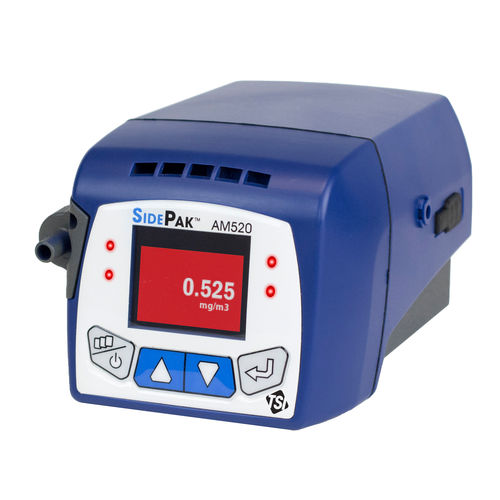

The SidePak™ Personal Aerosol Monitor AM520 is a small, portable, battery-operated, data-logging, light-scattering laser photometer that provides real-time aerosol mass concentration readings of dusts, fumes, mists, smoke and fog within a worker breathing zone. Newly designed inlet conditioners increase the mass concentration capability and provide size fraction cut points for PM 10 , PM 4 (Respirable), PM 5 (China Respirable), PM 2.5, PM 1 and 0.8 μm Diesel Particulate Matter (DPM). This monitor is the perfect solution for real-time, personal aerosol sampling in a variety of workplace environments, including but not limited to general industry, foundries, construction sites, chemical plants, refineries, petrochemical, power and utilities, transportation, aerospace, maritime, confined spaces and mining.

Features and benefits
- NOW with dual display and data logging of mass concentration and response concentration on one screen (i.e. for respirable silica, welding fume and DPM monitoring applications)
- NOW stores up to 10 custom calibration factors on the instrument for different applications-
- Custom calibration factor calculator to simplify calibration factor process
- Enhanced alarm features to include response concentration alarm value
- Robust impactors for higher mass concentration range
- Audible and visual alarms
- 0.8 μm DPM impactor
- High capacity battery
- Color OLED display
- Real-time mass concentration measurement and data logging for "in-the-field" data analysis
- Push button menu operation or programmable through newly improved TrakPro™ v5 Software
- User-selectable alarm levels to alert workers to high aerosol concentrations

Parameter Name	Parameter Value
Type	concentration
Applications	measurement aerosol
Configuration	portable compact
Other characteristics	real-time
