About

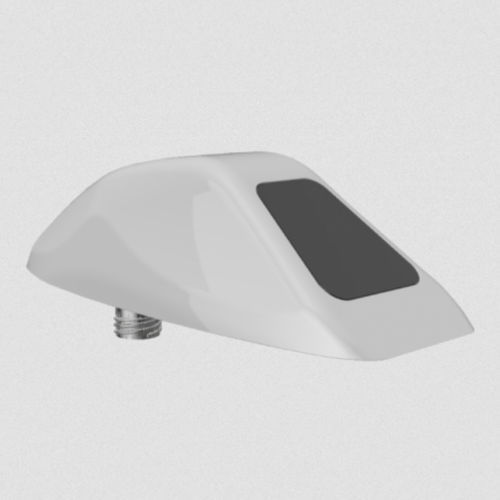

Part of the Lexavia Enhanced Vision System series, the LFS3506 leverages the industry’s most advanced infrared sensor technology integrated into a compact and lightweight aerodynamic housing. Using a state-of-the-art high-definition long-wave infrared (LWIR) sensor, the LFS3506 provides excellent situational awareness at an affordable cost, bringing a much-needed safety feature to aircraft of all sizes.
Specifications
Model LFS3506
Depth (in)
7.98
Width (in)
2.94
Height (in)
2.12
Weight (lb)
1.2
Field Of View
32°H x 26°V
Video Output
NTSC or PAL
Resolution
640 X 512 High-Res LWIR
Data I/O
ARINC 429, Ethernet, RS-232, RS-422, RS-485
Input Voltage
12-28 VDC
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Options |
|
