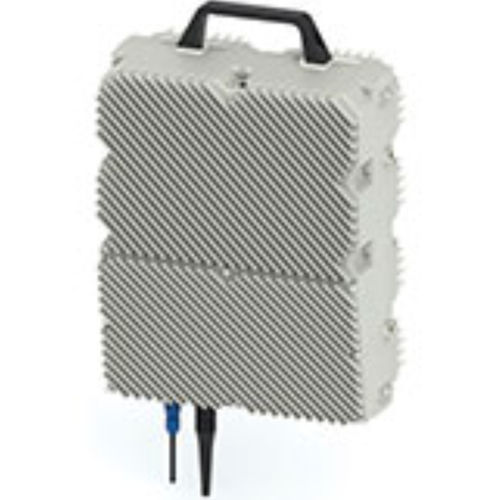

The CUBO outdoor is an environmentally robust modular high-density platform that combines multi-protocol transport for Radio Access Networks and metro applications. The outdoor unit offers network operators quick and easy installation and implementation with a wide range of applications including media conversion, transmission protection and performance monitoring all in a compact and flexible design. The outdoor unit is designed for outdoor, temperature uncontrolled applications (radio-site pole-, wall-, or strand-mount).

Multi-protocol transponder from 614 Mbit/s to 10.3 Gbit/s CPRI, 768 Mbit/s to 6.144 Gbit/s OBSAI, 1G and 10G Ethernet
Modular high-density outdoor unit
6 or 12 CPRI services per unit
Integrated WDM multiplexer (C-/DWDM)
Configurable operation mode
3R signal regeneration
Very low latency (<< 1μs)
Outdoor temperature range compliant chassis (-40° to 65°C)
Ingress Protection (EN 60529): IP67
Redundant and modular power supplies (in-service replaceable)
Easy access to optical ports, power supplies
Optical supervisory channel for remote management (Ethernet channel for management network)
System Management via secure Web terminal, EMS, NMS, SNMP/MIB, SDN ready

C-RAN media (wavelength) conversion
Metro network media (wavelength) conversion
Reach extension (repeater)
Transmission protection (Line protection; equipment protection)
Network demarcation unit
Performance monitoring (Quality of Service)

Parameter Name	Parameter Value
Options	compact robust
