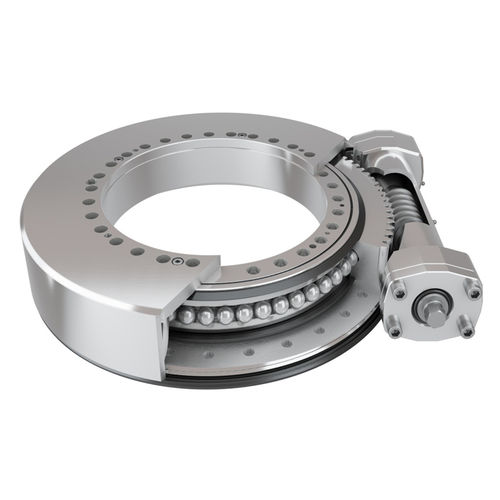

The rotating modules are compact rotational units integrated in a cast iron housing that contains a turning ring with a gear. The gear rotates the turning ring with great precision and allows for smooth rotation and maximum effort.
The rotation modules can support axial, radial and inclined loads and are completely sealed.

The rotation modules are indicated to work both horizontally and vertically in slow rotation equipment. The rotation modules of TGB Group Technologies have self-locking, therefore expensive external brake systems are not necessary.

In addition, they are equipped with motorized flanges on both sides, which allow an easy and flexible installation of the hydraulic or electric motor.

The main features that the turn modules of TGB Technologies present are:

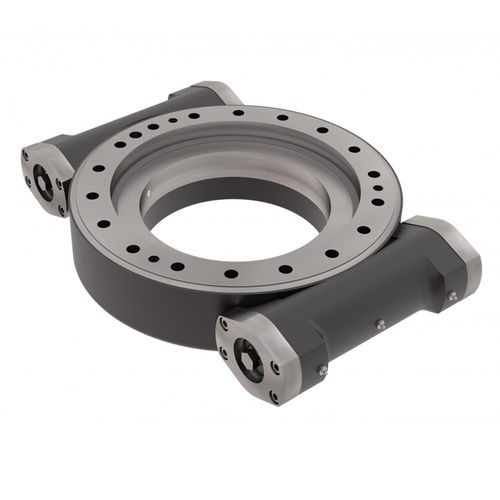

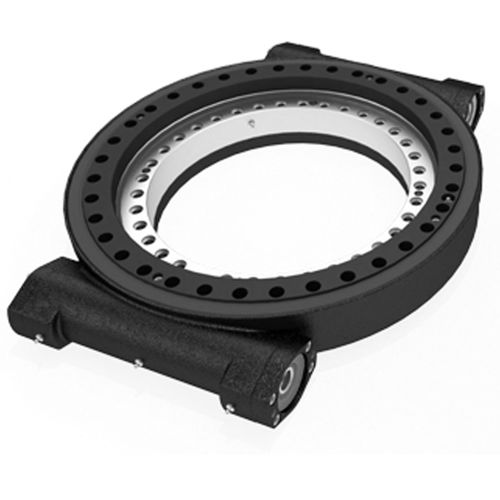

Possibility of 1 single axis or double axis
Transmission ratios (speed reducers) from 1:40 – 1: 150
Custom modifications
Compact construction
Easy installation and maintenance
High precision with low reaction (clearance between matched teeth)
Motorized connection flanges on both sides of helical gear
Long life performance
Sealed UV resistant
Protective dust layer (available in any RAL color)

The modules of rotation that TGB Group Technologies manufactures are recognized and well valued worldwide in different sectors of the market such as:

Lifting platforms and elevators
Solar movement systems (PV, CPV and CSP)
Wind turbines, forestry and agricultural equipment
Marine cranes (ships), marine platforms, small and medium cranes, crane trucks
Suction dredges, etc.

Parameter Name	Parameter Value
Options	compact single double
