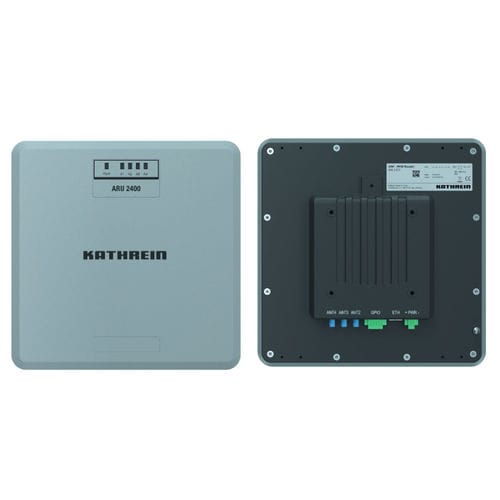

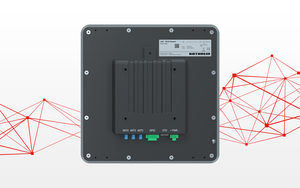

The Kathrein ARU 2000 reader family is a basic RAIN RFID reader with an integrated antenna for indoor applications in logistics, manufacturing and supply chain applications. Its best in class 27-dBm UHF RF unit and connectivity interface PoE and the basic level processing unit allow for a flexible integration into Industry 4.0 and IoT solutions. Based on the latest RFID standards, such as EPC Gen2v2/ISO 18000-63, Kathrein ARU 2000 series support all market leading transponder chip features.
Features
RAIN RFID reader with embedded computing module
▪ easy to install due to open connectors and FAKRA antenna sockets
▪ ready for shelf mounting with ITEM
▪ 60° antenna integrated
▪ 3 antenna ports
▪ +27 dBm port power
▪ @KRAI antenna support
▪ GPIO: 2 inputs, 2 outputs
▪ PoE
▪ basic LED visualisation
▪ IP40 indoor use
▪ type approval for Europe, US and RoW
Key Applications
Manufacturing and Automotive
▪ Logistics
▪ Track & Trace
▪ eKanBan
▪ Healthcare

Parameter Name	Parameter Value
Configuration	compact, embedded
Other characteristics	UHF with integrated antenna PoE
Frequency (Hz)	865000000 - 928000000
