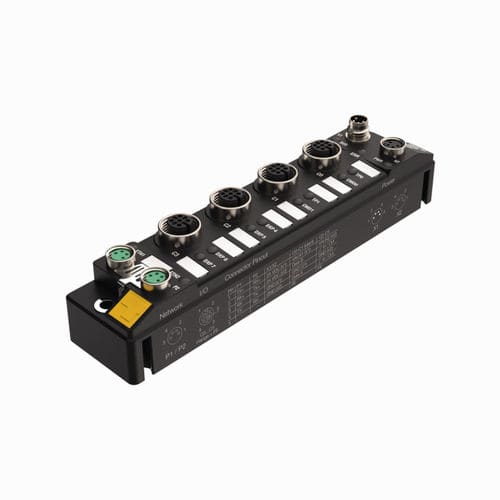

Compact Multiprotocol RFID Module for Ethernet
2 RFID Channels (HF/UHF) and 4 Universal Digital Channels, Configurable as PNP Inputs or 0.5-A Outputs
PROFINET device, EtherNet/IP device or Modbus TCP slave
PROFINET S2 system redundancy
Integrated Ethernet switch
Supports 10 Mbps/100 Mbps
Glass fiber reinforced housing
Shock and vibration tested
Fully potted module electronics
Protection classes IP65, IP67, IP69K
ATEX Zone 2/22
Up to 128 bytes of user data per read/write cycle per channel and use of fragments with 16 kilobytes of FIFO memory each
Data interface for convenient use of the RFID functions
Continuous HF bus mode with up to 32 HF read/write heads per channel
2 channels with M12 connection for RFID
4 universal digital channels, configurable as PNP inputs or 0.5 A outputs
Programmable ARGEE
Country of origin - DE
Weight - 219 g
Technical Data
Network protocol - Modbus TCP, EtherNet/IP, PROFINET
Signal type - RFID, Digital input, Digital input/output, Digital output
Connection technology signal - M12
Device type - I/O Module, Compact station, Field Logic Controller (ARGEE)
Transmission rate Ethernet - 10/100 Mbps
Connection technology Ethernet - 2 x M8, 4-pin, D-coded
Ambient temperature - -40…+70 °C
