For discrete dosage and continuous delivery

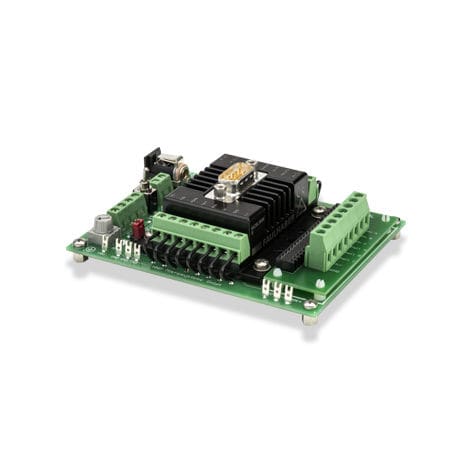

The controller S-BL is recommended for high requirements in control of discrete and continuous delivery tasks in combination with a mzr-pump with special brushless motor. The 16-bit microcontroller allows speed and position control for highly accurate dosage. The compact design on a PCB offers flexible installation. Process control link can be established via a RS-232 interface. Motor speed or flow rate can be set either by an analog input (0-10 V) or a potentiometer mounted on the PCB. Programs for dosage can be saved in the memory.
Advantages
High quality pump controller for continuous delivery and discrete dosage
For mzr-pumps with special brushless motor
Programming of controller with Windows® software »Motion Manager«
Potentiometer for speed set
Analog input 0-10 V
1 digital input, input is equipped with a switch
1 digital output, optionally programmable as input
Two colored LED status indicator
EEPROM memory
RS-232 interface
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Other characteristics |
compact
|
