About

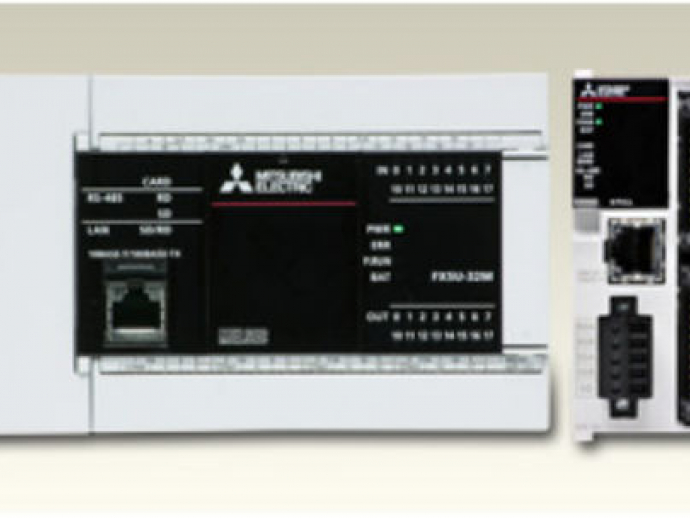

The Mitsubishi MELSEC-F Series has been reborn as the MELSEC iQ-F Series, offering enhanced high speed bus, expanded built-in functions, advanced SSCNETIII/H support and improved engineering environment. Program and parameters are set with the GXWorks3 engineering software.
From stand alone use to networked system application, MELSEC iQ-F brings your business to the next level of industry.

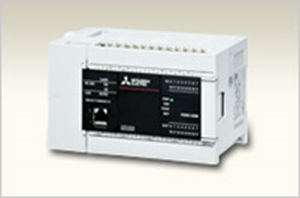

CPU module
All-in-one main unit with power supply, CPU and I/O. Built-in features include high-speed counters, positioning outputs, Ethernet, and SD card slot.

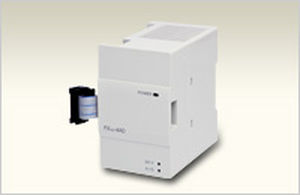

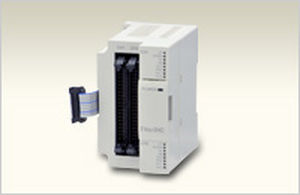

I/O module
I / O modules are available with and without built-in power supply, and in various input / output configurations.
Analog Control module
Options for analog inputs and outputs, temperature sensor inputs, and temperature control. FX3 series analog intelligent function modules can also be connected.
High-Speed Counting module
High speed counter modules. FX3 series high speed counter modules can also be connected.
Simple motion / Positioning Control module
Simple motion module supporting CC-Link IE TSN and SSCNETâ…¢/H. FX series pulse output modules can also be connected.
Network / Communication module
RS-232, RS-485, RS-422 communication modules. FX3 series CC-Link master modules can also be connected.
Safety extension module. Easily create a system just by connecting a safety extension module to FX5U/FX5UC CPU module.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Input/output |
with integrated I/O, analog outputs, analog inputs
|
| Network |
networked
|
| Other characteristics |
high-speed
|
| Applications |
safety
|
