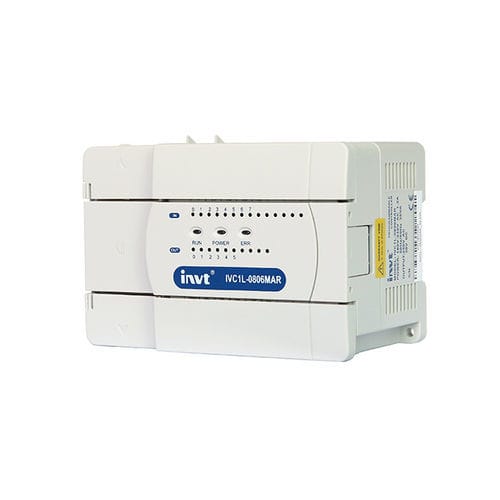

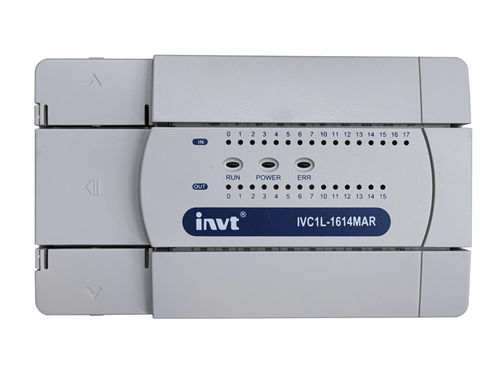

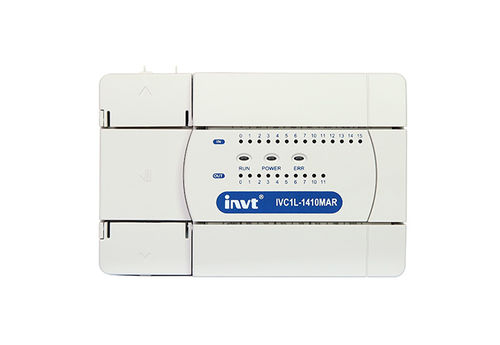

INVT IVC1 PLC is a micro high performance PLC with compact structure and powerful function. It can be widely applied in manufacturing industries including textile and chemical fiber, machine tool, cables, food and beverages, packaging, plastic steel, construction machinery, air conditioner, elevator and printing.

Main features
MAX. IO points: 128
Standard 3 isolated serial ports:1 RS232/2 RS485
Support 6 high speed pulse input
Support 3x100kHz high speed pulse output
Program capacity: 16K steps
Program power-off permanent storage
Equipped with rechargeable lithium battery, real-time clock saved for 3 years.
Max. 7 extension module
The main module is divided into two kinds: DC power supply（19-30VDC）and AC power supply（85-264VAC）

Parameter Name	Parameter Value
Type	compact micro
Input/output	analog inputs, analog outputs
Network	RS485 RS232
Other characteristics	modular real-time
