Farewell to PLC's!
The EZRack was primarily designed as an edge gateway for entry into Industry 4.0 applications. Hence, this system enables you to implement e.g. condition-based maintenance concepts quickly and easily. At the same time, the EZRack is a fully modular PLC system for industrial use with features that are otherwise only found in premium-class controllers. In contrast, the price is at the level of compact controllers. And: The full version of the programming software is completely free!

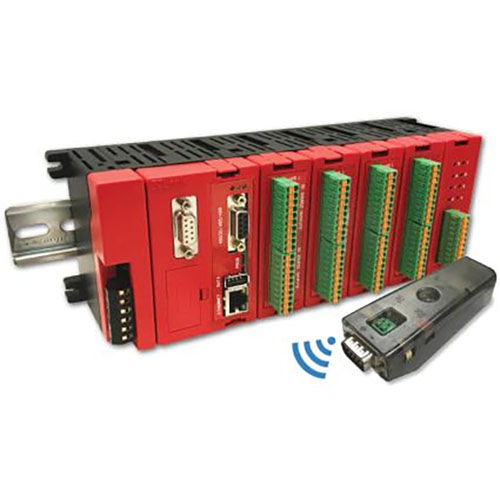

EZRack is available in versions with 3, 5 or 7 slots including power supply module. The CPU is equipped with 2 serial ports, Ethernet port and USB port as well as Micro USB port. To complete the system, it can be equipped with several digital and analog I/O modules plus various special modules (e.g. high speed counters, thermocouples, etc.).

And these are the specs:
- 2,4 ms Scantime Per 1k Instructions
- 1 MB User Retentive Memory, 500K Instruction Words, 16K Registers
- Hot-Swappable I/O Modules
- Auto-Tuned PID Control (8 Loops)
- 32 Bit Floating Point Arithmetic

The Software offers:

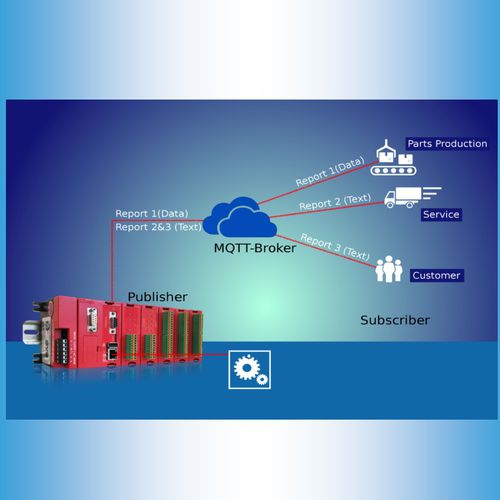

- IIoT/I4.0 Ready CPU With Built-in MQTT Protocol
- Auto Tag Name Addressing / Programming
- Programming in Simple Ladder Logic
- Rich Instruction Sets
- Advanced Function Blocks
- USB Data Logging up to 64 GB
- Offline Programme Simulator
- Powerful Debugging Tools
- High Speed Counter, Drum Sequencer, Timer

Parameter Name	Parameter Value
Type	compact DIN rail
Input/output	with expandable I/O card, digital input, analog inputs, digital outputs, analog outputs, relay outputs
Network	Modbus RS232 Ethernet TCP/IP
Other characteristics	modular
