About

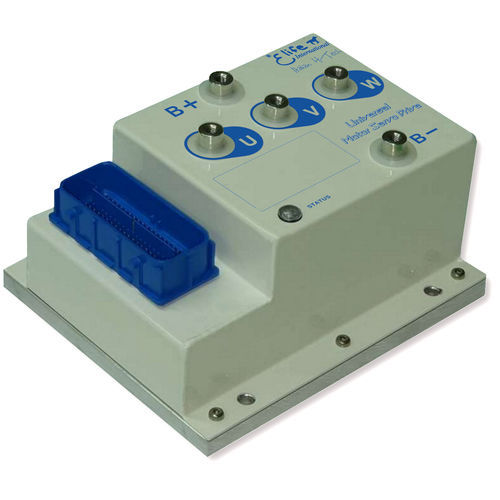

This technical review shows the main features and technical information of Elife-Drive KV Series.
For further information about this series and to define an evaluation of your needs, please refer to our website to contact us.
The main key features include:
- Flexible and scalable, designed to control from 10V to 900V Brushless PMDC and PMSM, Brushed and AC Motors.
- Supported feedback types (are all available in version X):
Resolver, Absolute Encoder, SinCos, Hall Sensors, Incremental Encoder, Fa-Coder, SSI/BiSS Communication Protocol
- Advanced algorithms for predictive speed and torque control and telemetry of the Internal functions
- Communication protocol1: CANopen®: CiA® DS301 and CiA® DSP402 - (EtherCAT on request)
(Profile position mode, Profile velocity mode, Profile torque mode, Cyclic sync position mode, Homing mode)
- Electromagnetic Holding Brake Output with DPR System (Dynamic Power Reduction)
- European ConformityC, designed in accordance with EN 60950-1 safety requirements and EMC standards.
Specification:
- Four Quadrant Regenerative Operation
- Sinusoidal or Trapezoidal Commutation Methods
- Fully Configurable and Programmable
- Programmable Emergency Ramp Input
- Class 3 Safe Torque Off (STO) Input
- Auxiliary Supply Voltage 9-32V
- IP 66 Metal Enclosure
Main Features:
- 6 x Programmable Single Ended Digital Inputs
- 6 x Programmable Digital Outputs
- 1 x 2A Brake Control Output
- 1 x Programmable PVM Input
- 1 x Programmable 10V 12-bit Analog Input
- 1 x Programmable 010V 12-bit Analog Output
- 1 x 5V - 100mA Throttle Output
Dimensions:
without flying connector: 150x125x80 mm
with 90° flying connector: 150x125x100 mm
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
|
| Motor type |
|
| Other characteristics |
|
| Input/output |
digital input, digital output
|
| Input voltage |
Min.: 12 VMax.: 768 V
|
| Current (A) |
125 - 350
|
