Drived by integrated pneumatic cylinder
Guided by 2 rods on ball bushings
Adjustable mechanical stops
Hydraulic shock absorbers
Inductive sensors
Flow limitation

Option :
Intermediate position(s) pneumaticaly retractable

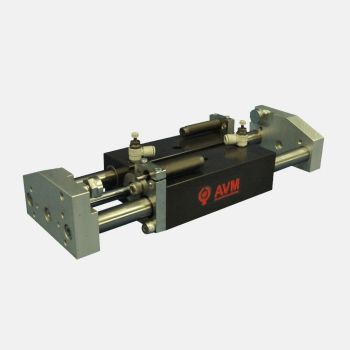

Compact and robust manipulator
With a compact and very robust design, they are suitable for short-stroke movement where rigidity is necessary.
They are often used in vertical or lifting modules in the design of pneumatic handling assemblies.
For longer strokes, use the Type 37 manipulators.

Several mounting directions possible
Equipped with the same end plates and without exceeding of the cylinder at the end of the stroke, these compact manipulators can be fixed by the 2 end plates to have the movable central body, but they can also be fixed by the body, the rod cylinder can then be oriented up or down.

Optimized end of stroke adjustments
The fine adjustment of the stroke is done by mechanical stops without any intervention on the hydraulic dampers and the inductive detectors: this saves time, guarantees the reliability of the adjustment and ensures an optimal lifetime of these components. All these components are very common on the market and are very accessible, thus facilitating the maintenance, knowing that we have them in stock.

Compact manipulator with intermediate position
An intermediate position module at the exit and / or at the re-entry makes it possible to realize 2 different strokes with the same positioning precision. Very often used on vertical manipulators when the picking station and the depositing station are not at the same height.

Parameter Name	Parameter Value
Drive type	pneumatic, mechanical
Gripping device	with gripping tool
Applications	positioning handling
Other characteristics	compact
Carrying capacity	Max.: 30 kg (66.1 lb)Min.: 1 kg (2.2 lb)
Maximale stroke	Max.: 160 mm (6 in)Min.: 25 mm (1 in)
Maximum lifting speed	0.8 m/s (2.6 ft/s)
Pressure	Max.: 8 bar (116 psi)Min.: 2 bar (29 psi)
